Oem/odm 1 Input 1 Output 18/24/36/54-way Photovoltaic Combiner Box Plastic Electric Outdoor Waterproof Ip65 Panel Mount Distribution Box
- · MODEL:
- MY-PV1/1
- · Country Of Origin:
- Zhejiang, China
- · Brand:
- mday
- · Material:
- Copper, PVC
- · Rated Current:
- 15a
- · Application:
- LED Touch Control, Automotive
- · Rated Frequency:
- 50Hz, 60Hz
- · Voltage:
- 600, 1000
Product Description
 |

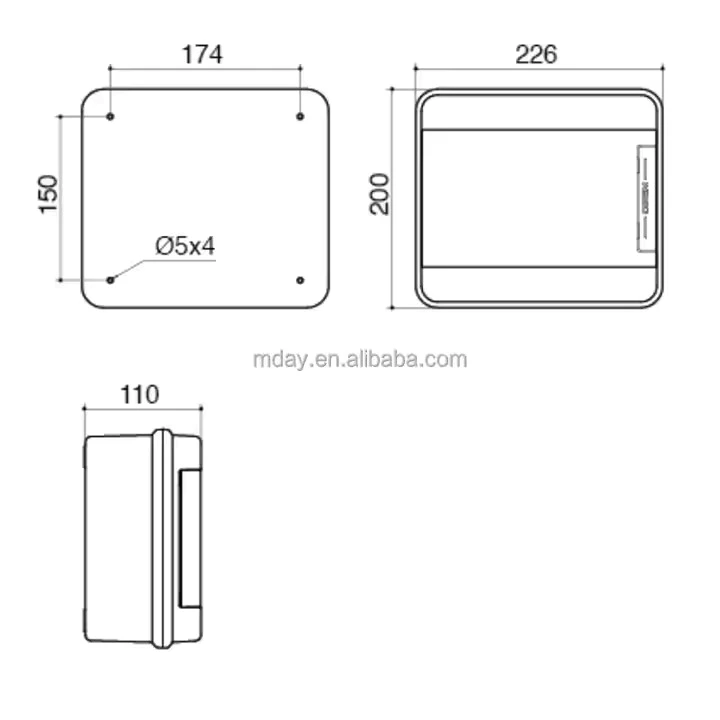

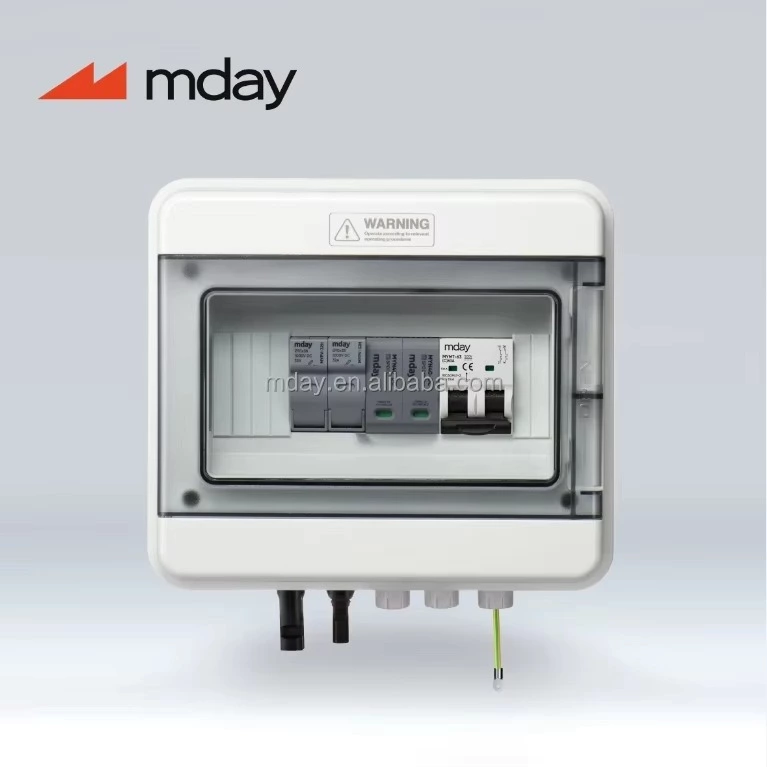

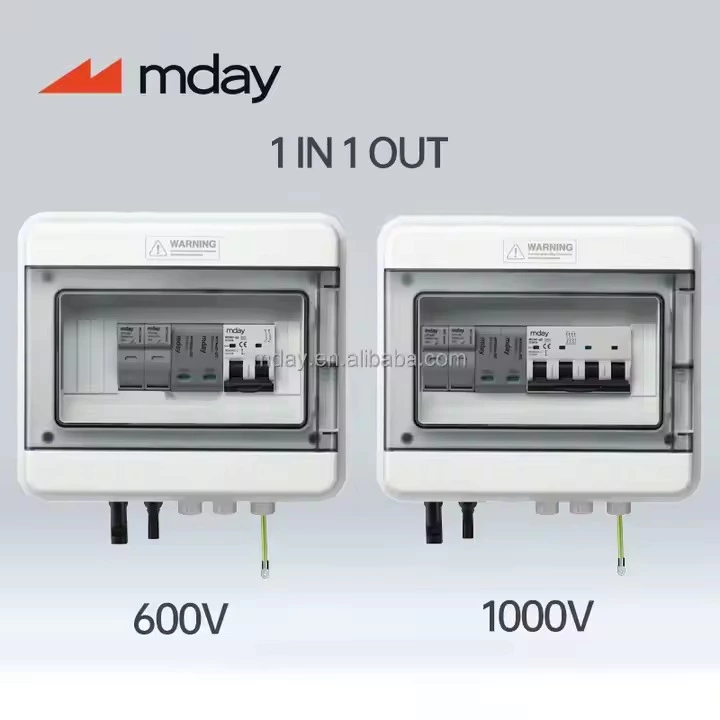

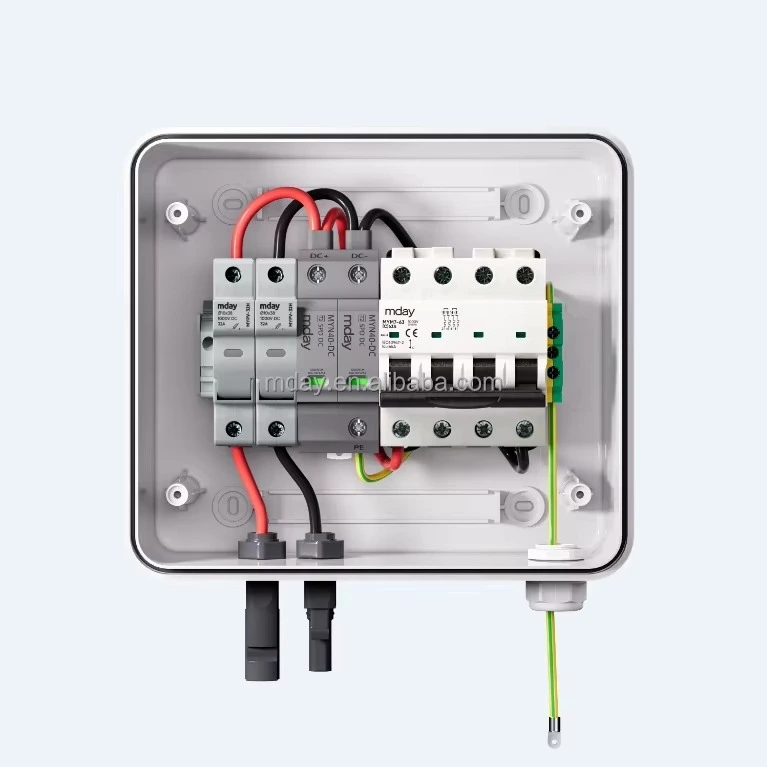

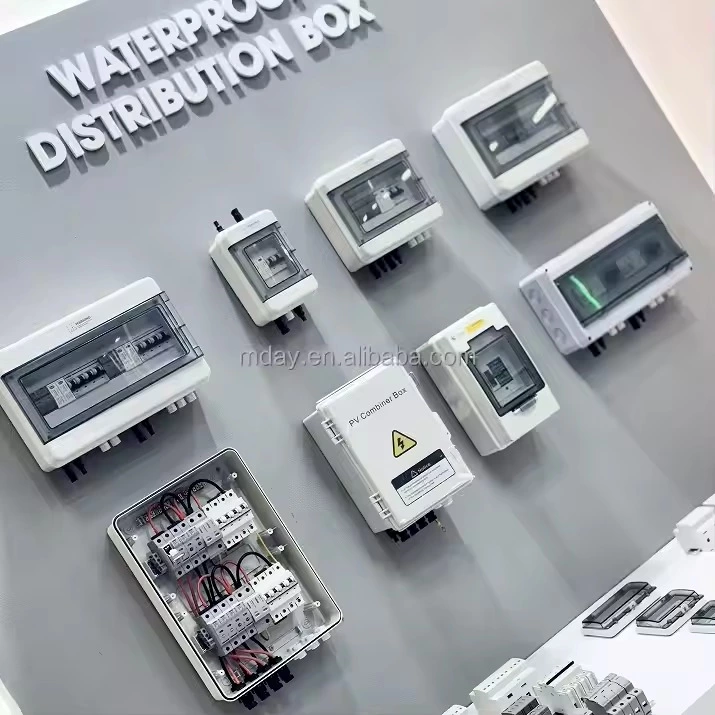

DC MY-PV1/1 600V combiner box
Features/Benefits
* High reliability
With DC fuse, DC surge protection, DC circuit breaker or DC load isolation switch.
* Strong adaptability IP65 design, waterproof, dustproof, UV resistant. Strict high and low temperature test, wide range of uses. Simple installation, simplified system wiring, convenient wiring, the box is cold- molded steel and other metal materials.
* Flexible configuration For use in monocrystalline silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Rated current of photovoltaic fuses.
|
 |
 |

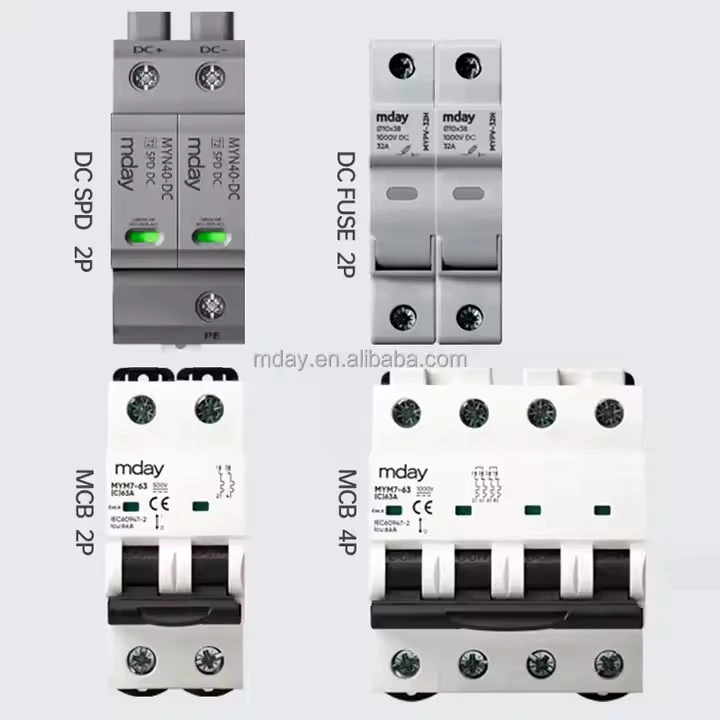

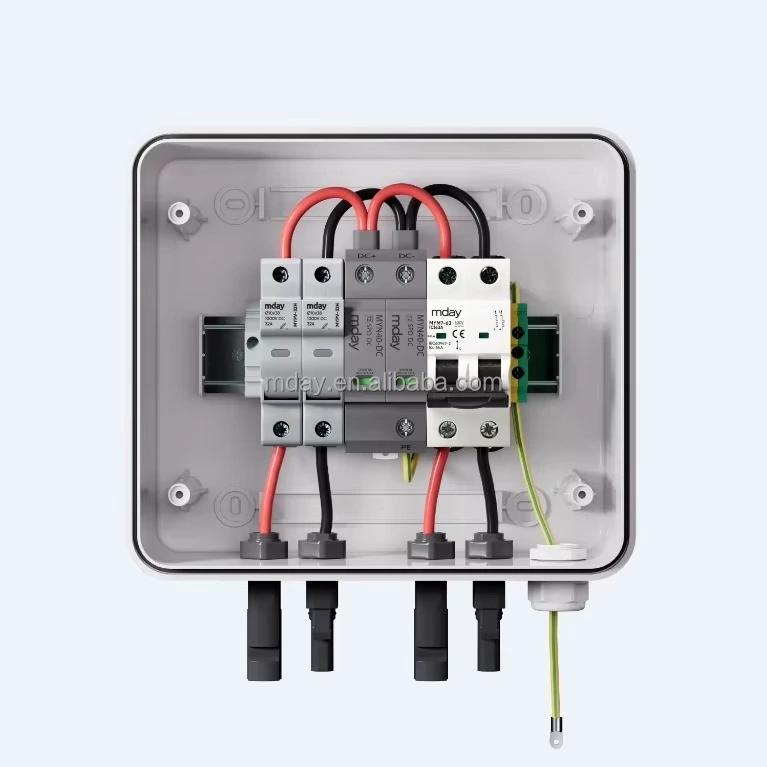

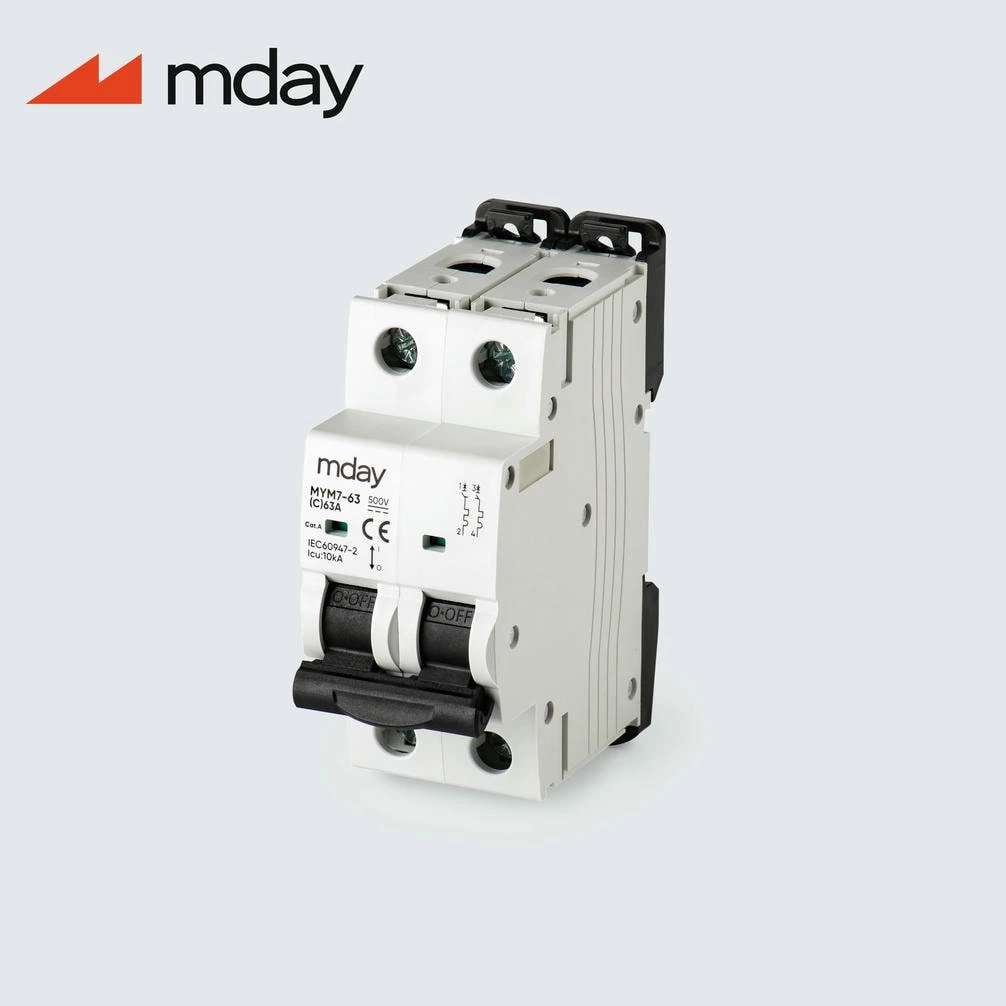

MY-PV1/1 600VDC fuse 32A * 2 pcs DC MCB 2P * 1 pc

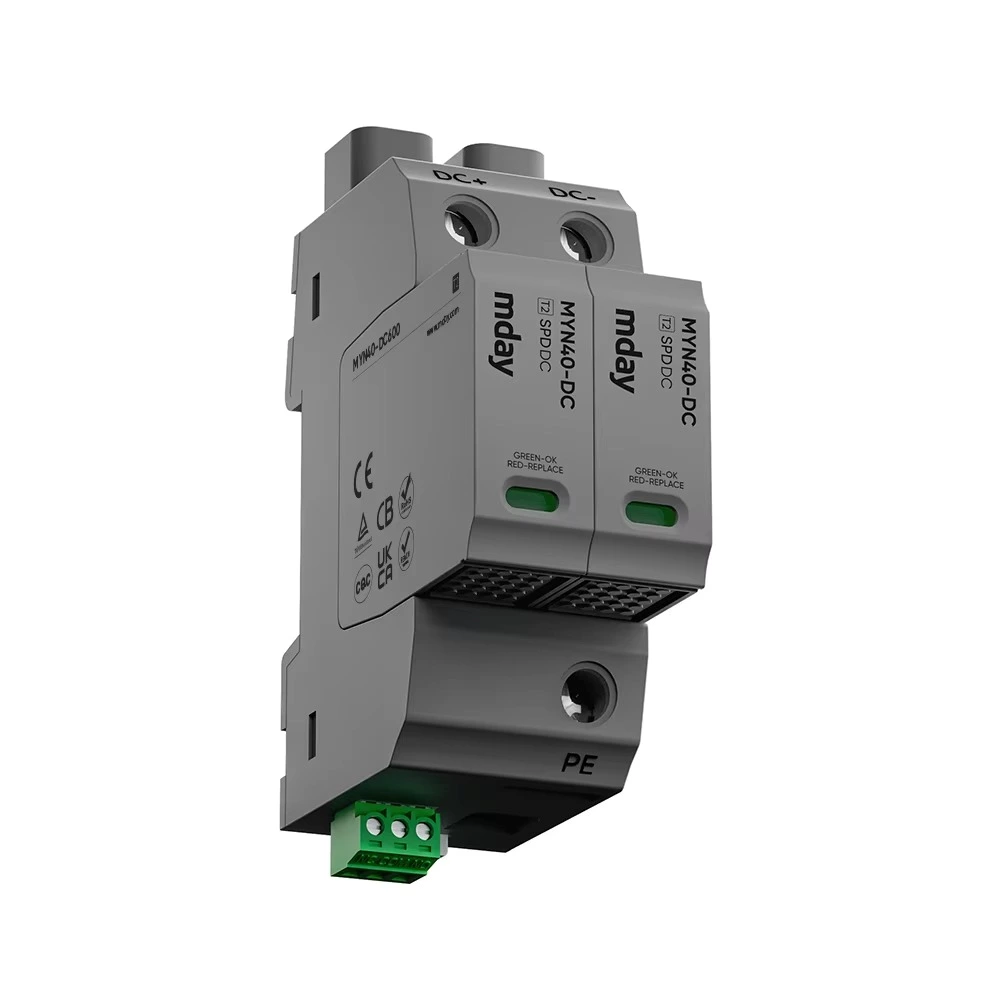

DC SPD 2P * 1 piece
|

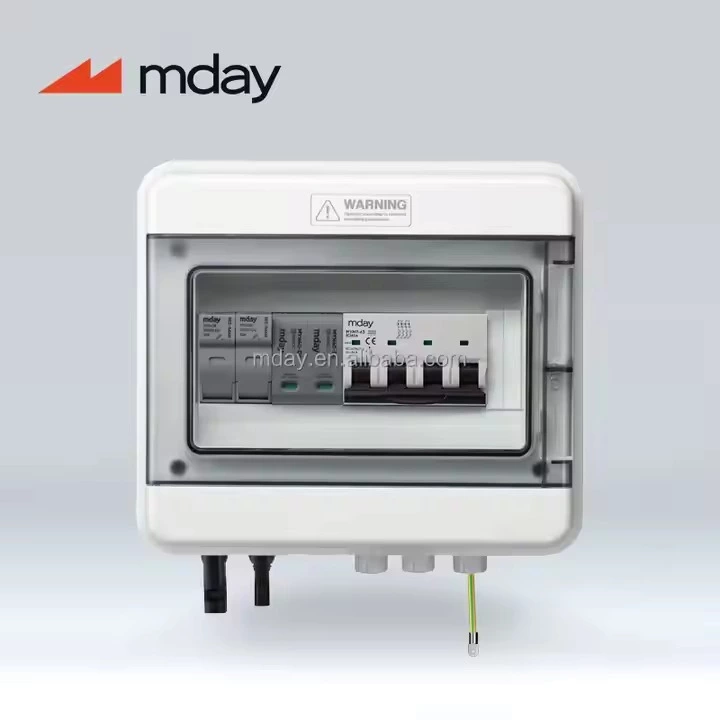

MY-PV1/1 1000VDC fuse 32A * 2 pcs DC MCB 4P * 1 pc
DC SPD 2P * 1 piece
|
 |
 |
 |
| DC Fuse | DC MCB | DC SPD |
|
Name
|
MY-PV1/1
|
|
|
Electrical parameters
|
||
|
System maximum DC voltage
|
600V
|
1000V
|
|
Maximum input current per string
|
15A
|
|
|
Maximum input string
|
1
|
|
|
Maximum output switch current
|
16A/20A
|
|
|
Inverter MPPT quantity
|
1
|
|
|
Output string number
|
1
|
|
|
Lightning protection
|
||
|
Test Category
|
Secondary protection
|
|
|
Nominal discharge current
|
20 years old
|
|
|
Maximum discharge current
|
40 years old
|
|
|
Voltage protection level
|
2.8 kV
|
3.8kv
|
|
Maximum continuous operating voltage Uc
|
630V
|
1050V
|
|
Polish
|
2P
|
3p
|
|
Structural features
|
Plug Push Module
|
|
|
system
|
||
|
Protection level
|
IP65
|
|
|
Output switch
|
DC isolating switch (standard) / DC circuit breaker (optional)
|
|
|

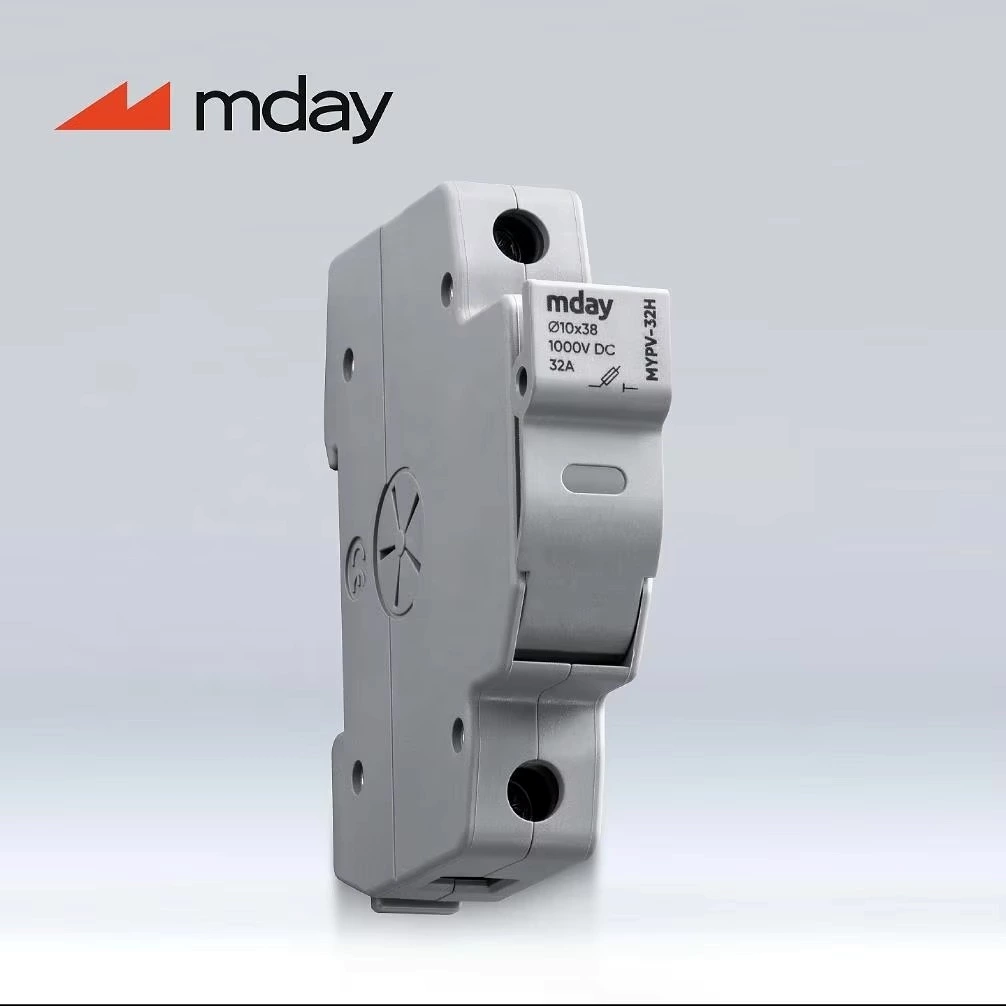

Photovoltaic DC fuse
|
standard
|
|
|
Photovoltaic surge protector
|
Standard
|
|
|
Monitoring module
|
Optional
|
|
|
Prevent diode
|
Optional
|
|
|
Box material
|
Polyvinyl chloride
|
|
|
Installation Method
|
Wall Mount Type
|
|
|
Operating temperature
|
-25℃~+55℃
|
|
|
Temperature rise
|
2000m
|
|
|
Allowable relative humidity
|
0-95%, non-condensing
|
|
|

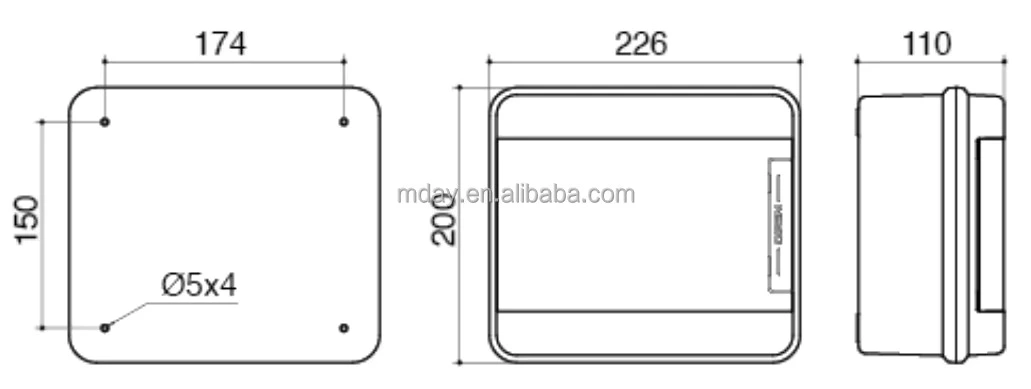

Mechanical parameters
|
||
|
W * H * D
|
300*260*140
|
|

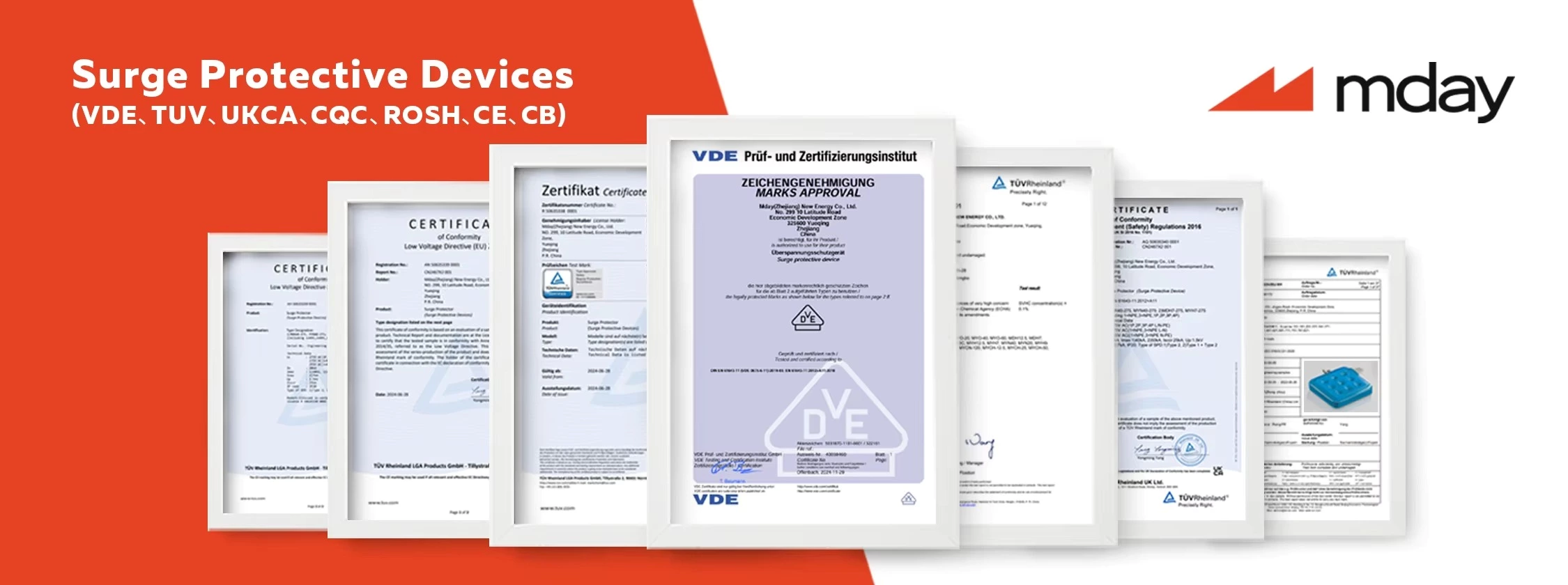

Certification
We are the factory
Mday New Energy
is a trusted manufacturer of cross-connect protection components for photovoltaic systems . Our experience working in the electrical industry for more than 12 years allows us to create solar DC components that meet the latest DC standards. Through our focus on the design, production and marketing of solar DC protection, we can bring brand-building photovoltaic protection solutions.

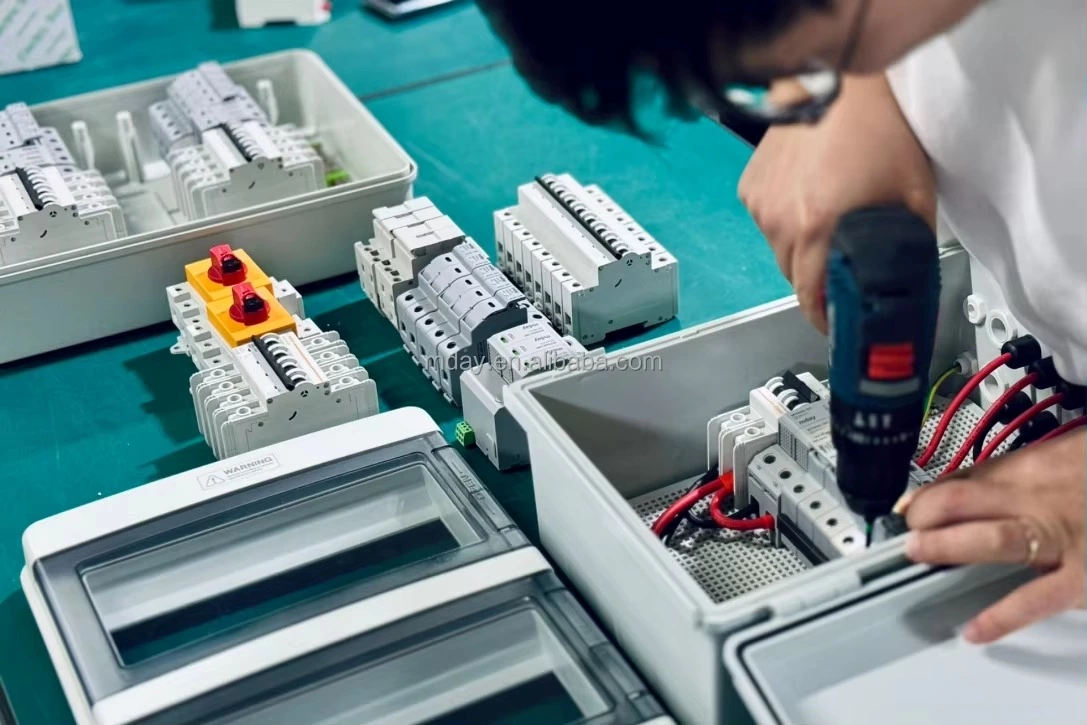

Independent production of accessories
All accessories of Mday are produced independently, including housings, copper parts and varistor chips, therefore, the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |

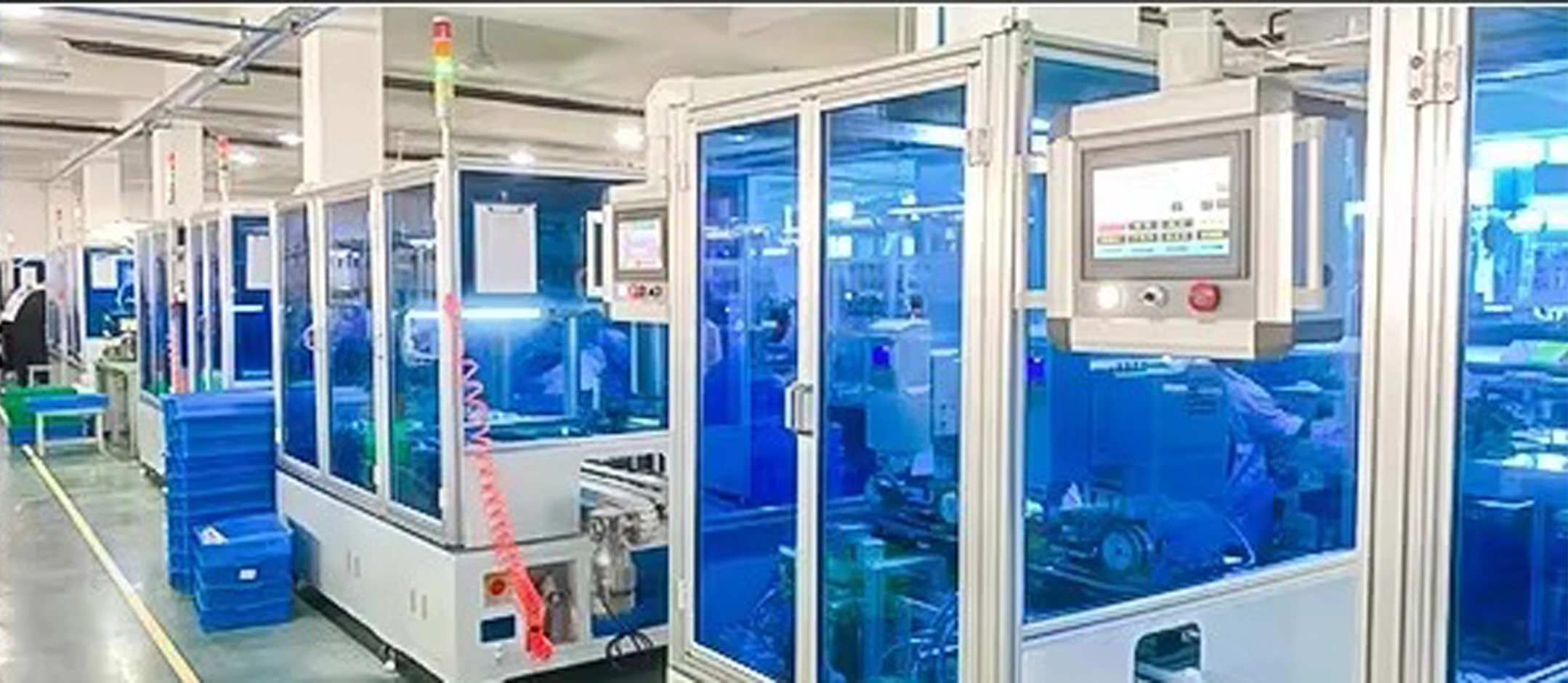

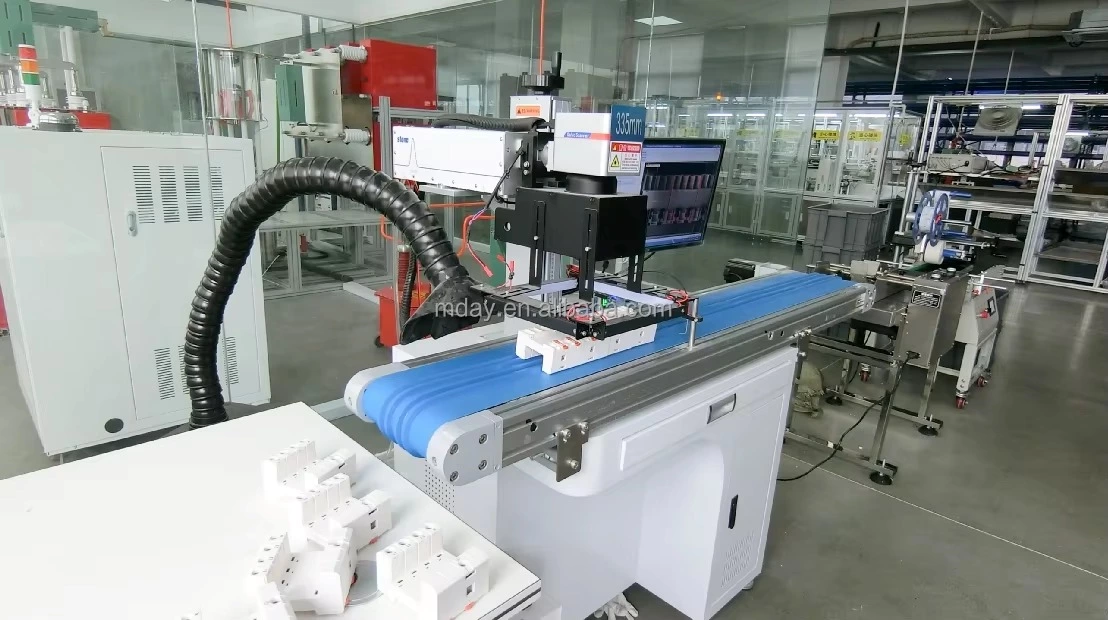

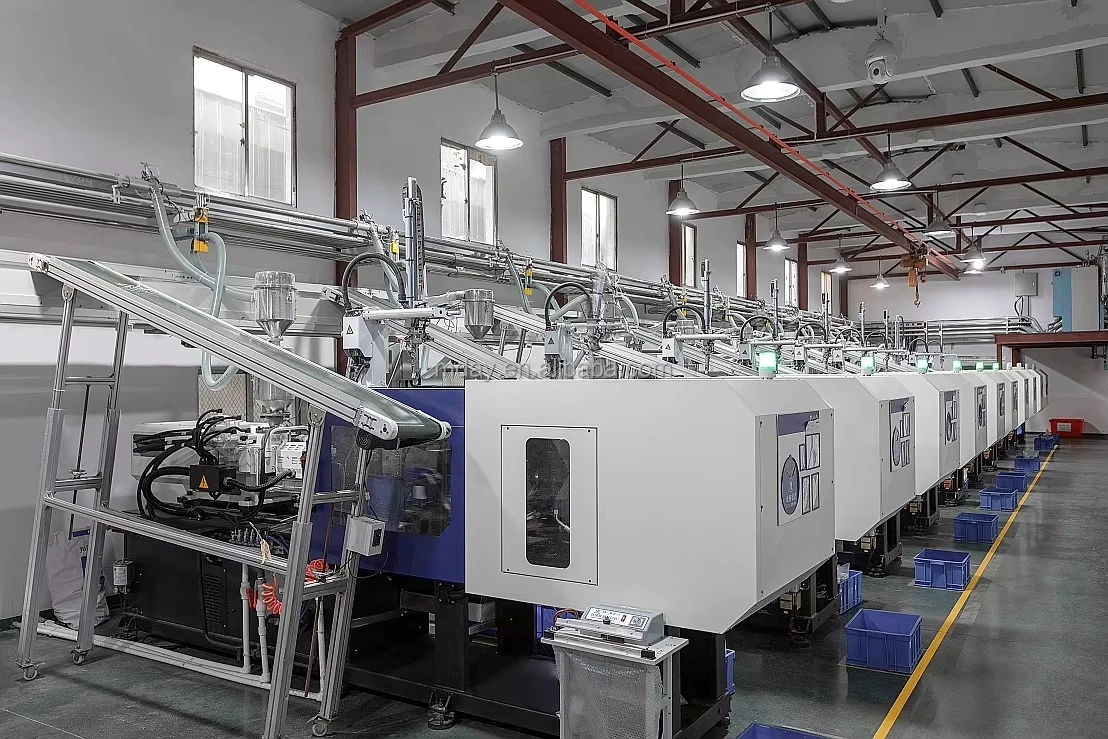

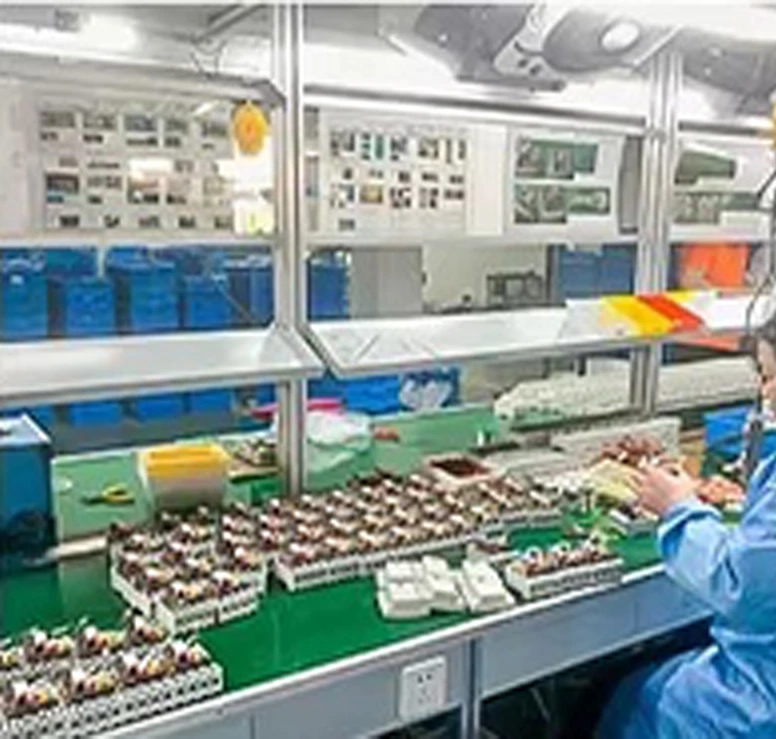

Injection molding workshop automated assembly line assembly automated assembly line

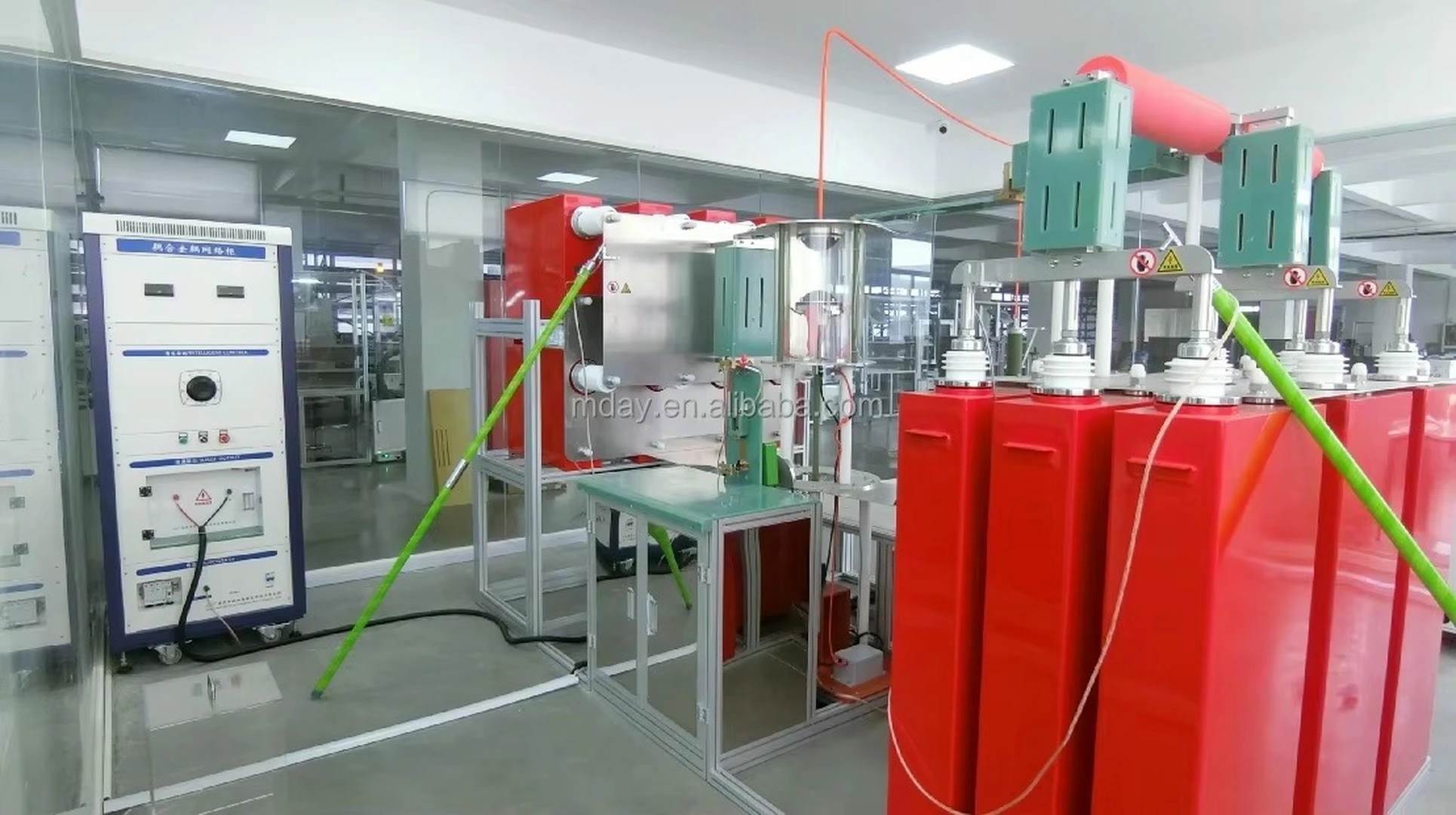

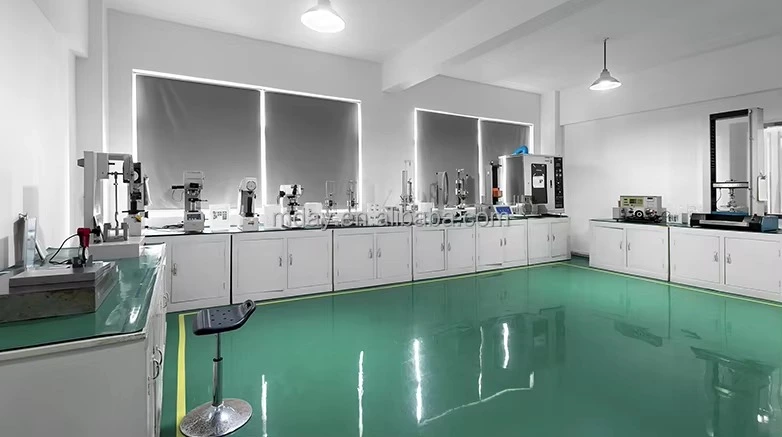

Own test laboratory

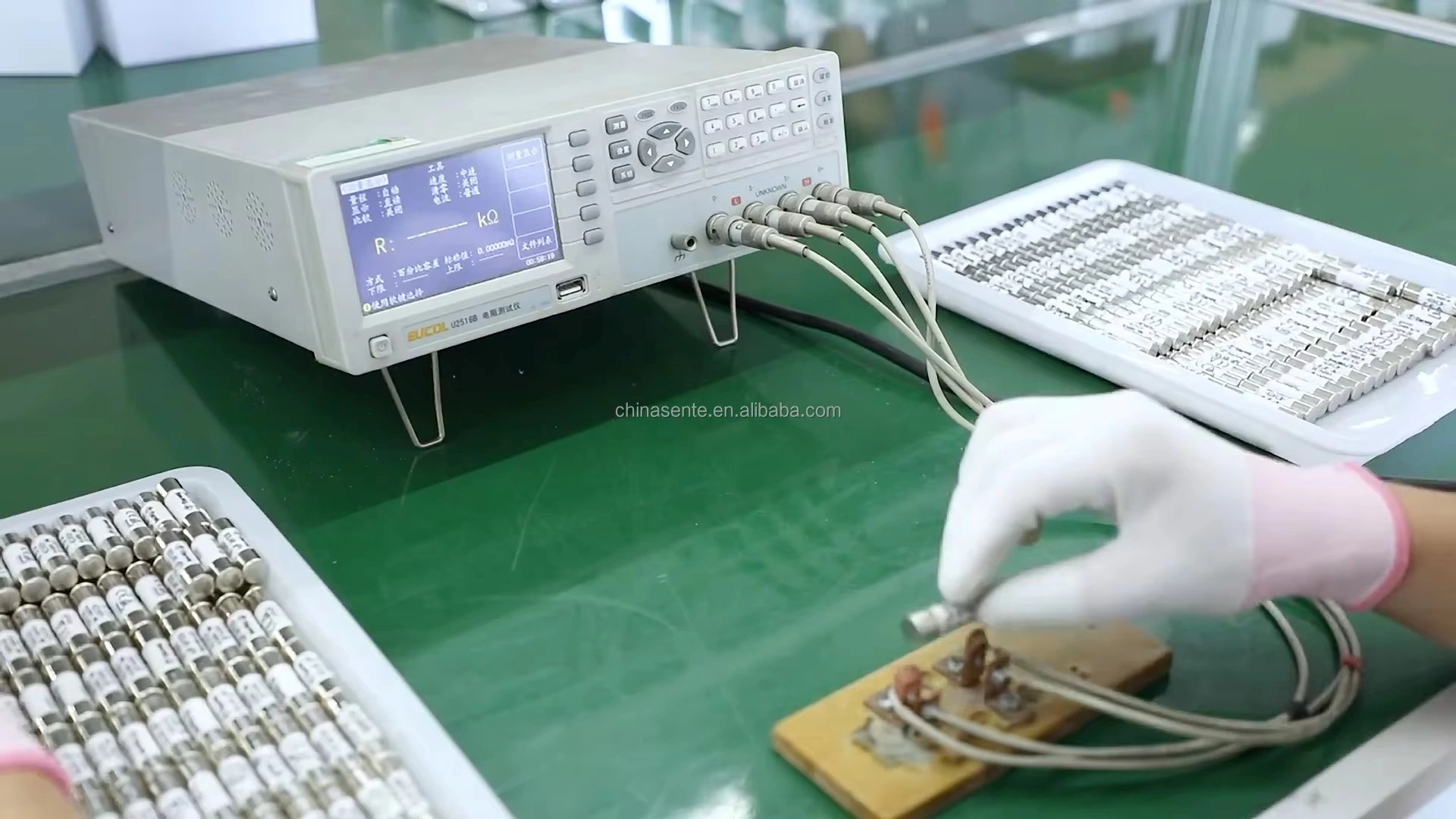

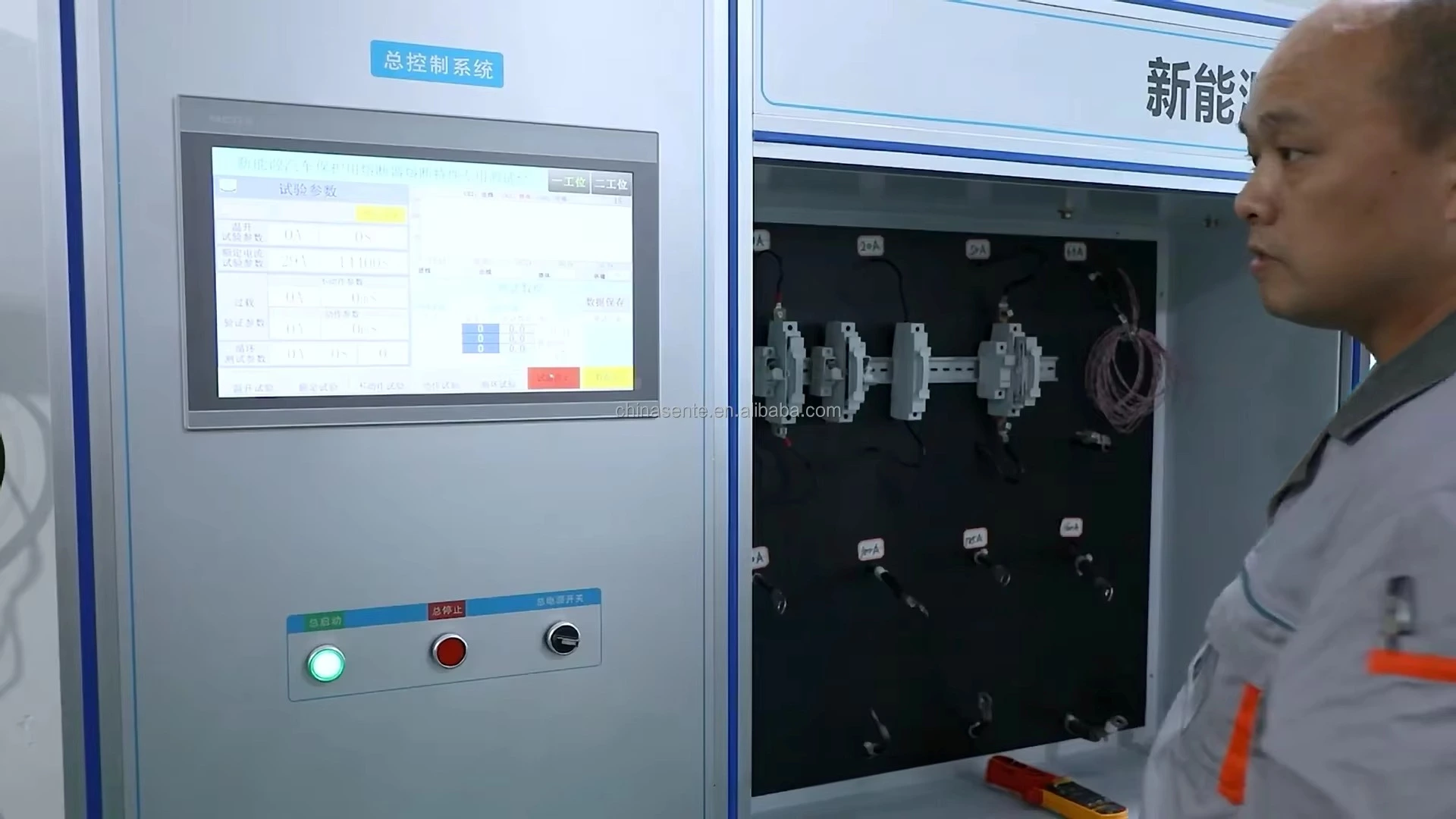

We have test equipment Type tests are carried out in a purpose built test laboratory. The purpose of type tests is to prove the functional and rated characteristics of the MCB.
 |
 |
 |
| T1 (10/350 μs) and T2 (8/20 μs) tests | Functional characteristics of fuse 0.5A-3150A voltage test | Resistance test |

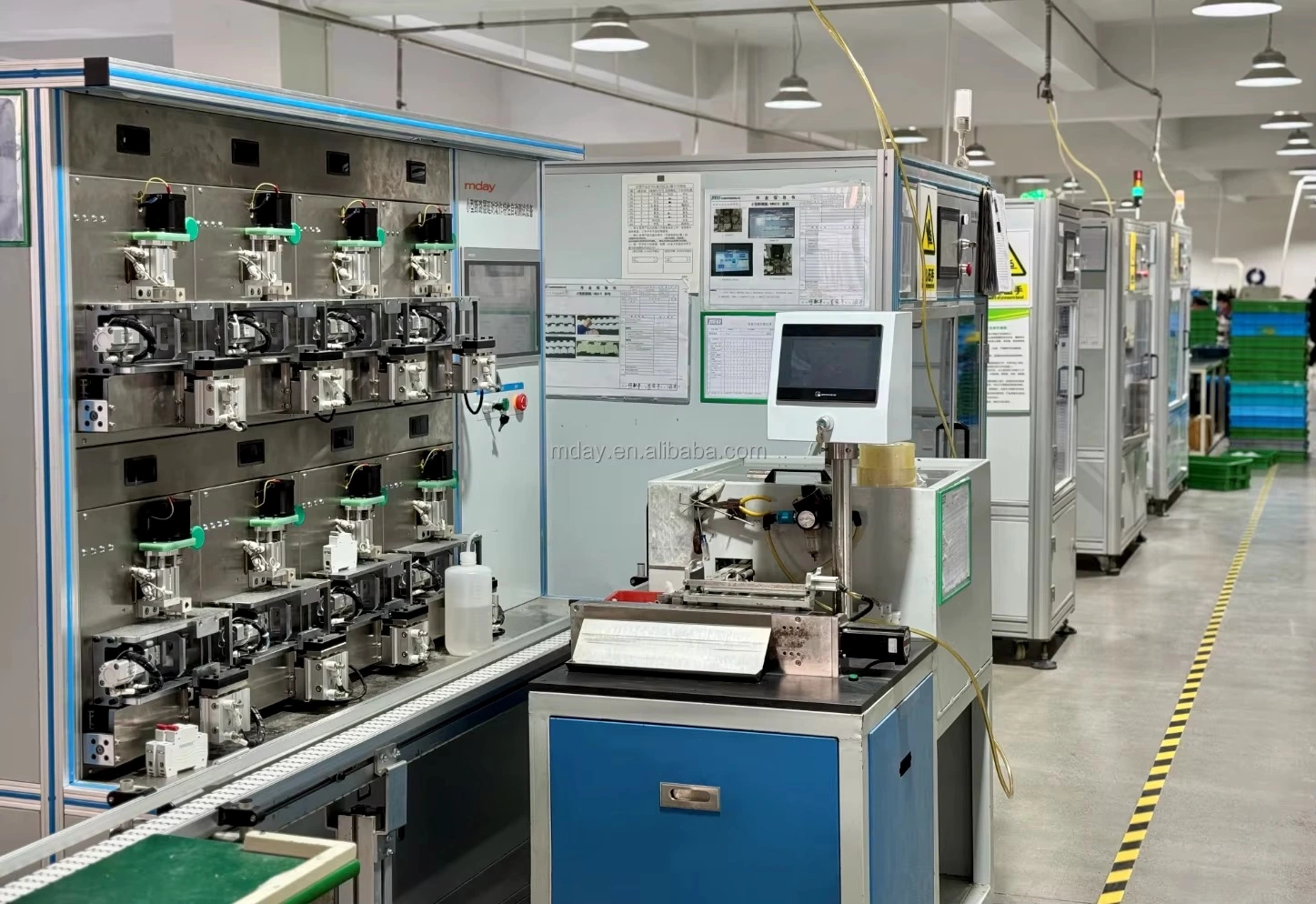

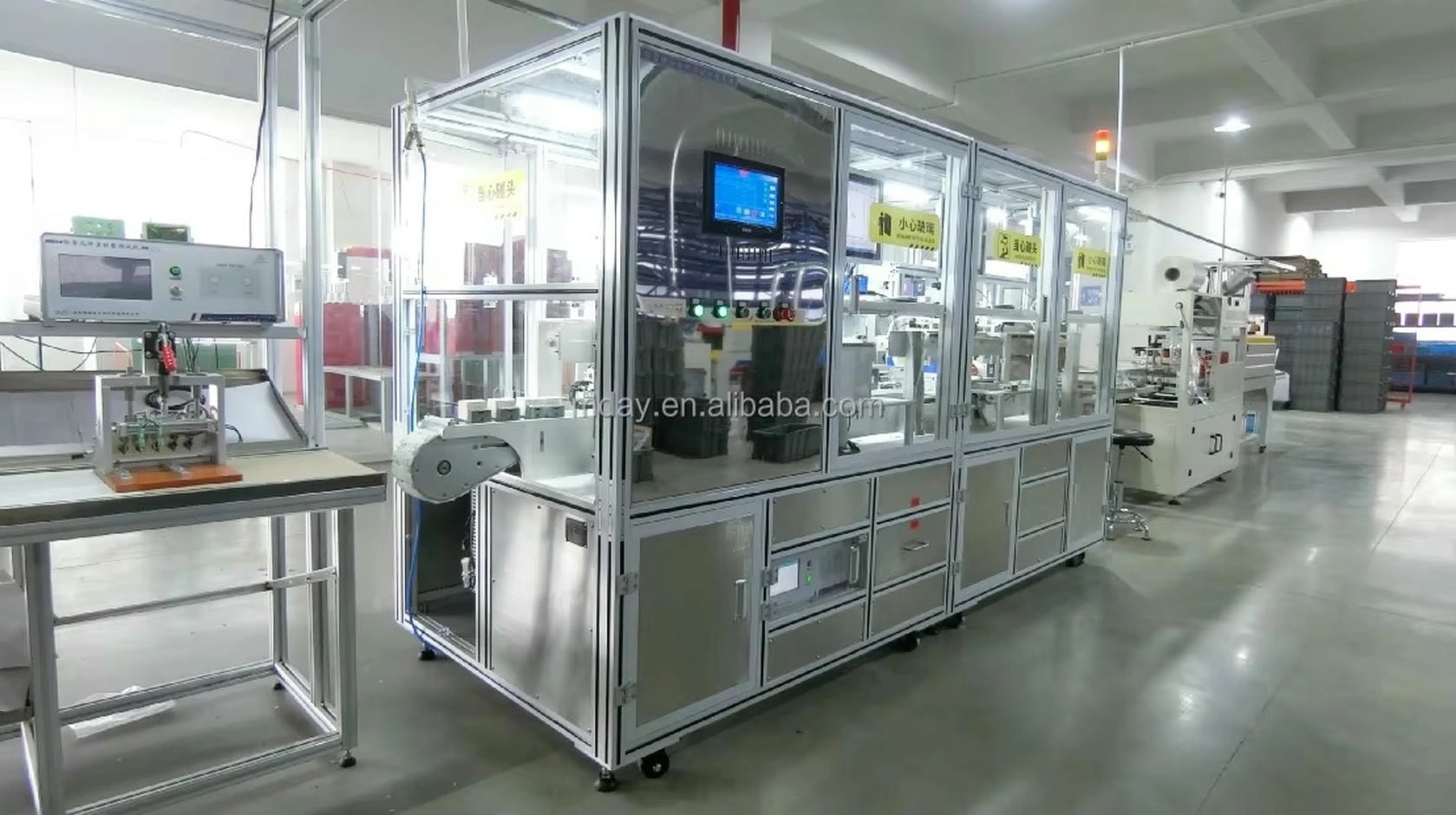

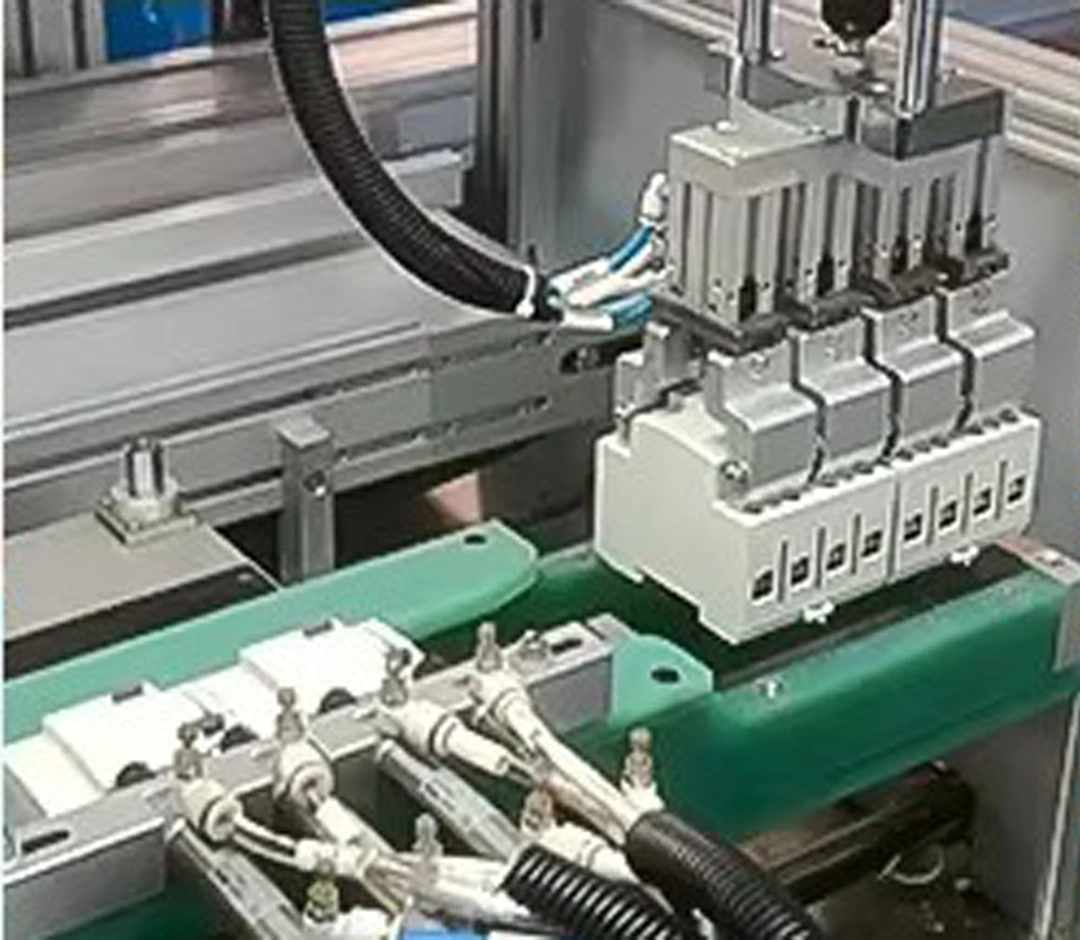

SPD MCB fuse automatic production line

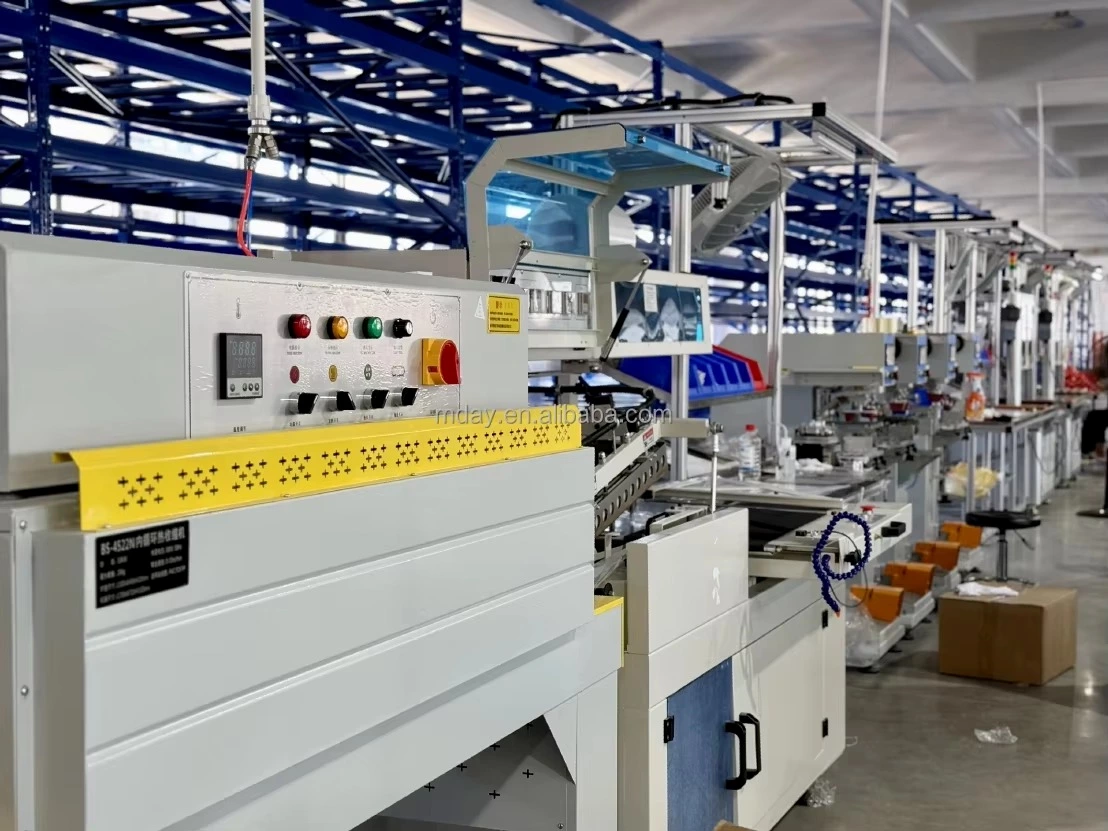

We have automatic production lines to control the production cycle and product quality of each batch of orders
 |
 |
 |
| 1. Automated assembly line | 2.Robot Arm | 3. Product testing |
 |
 |
 |

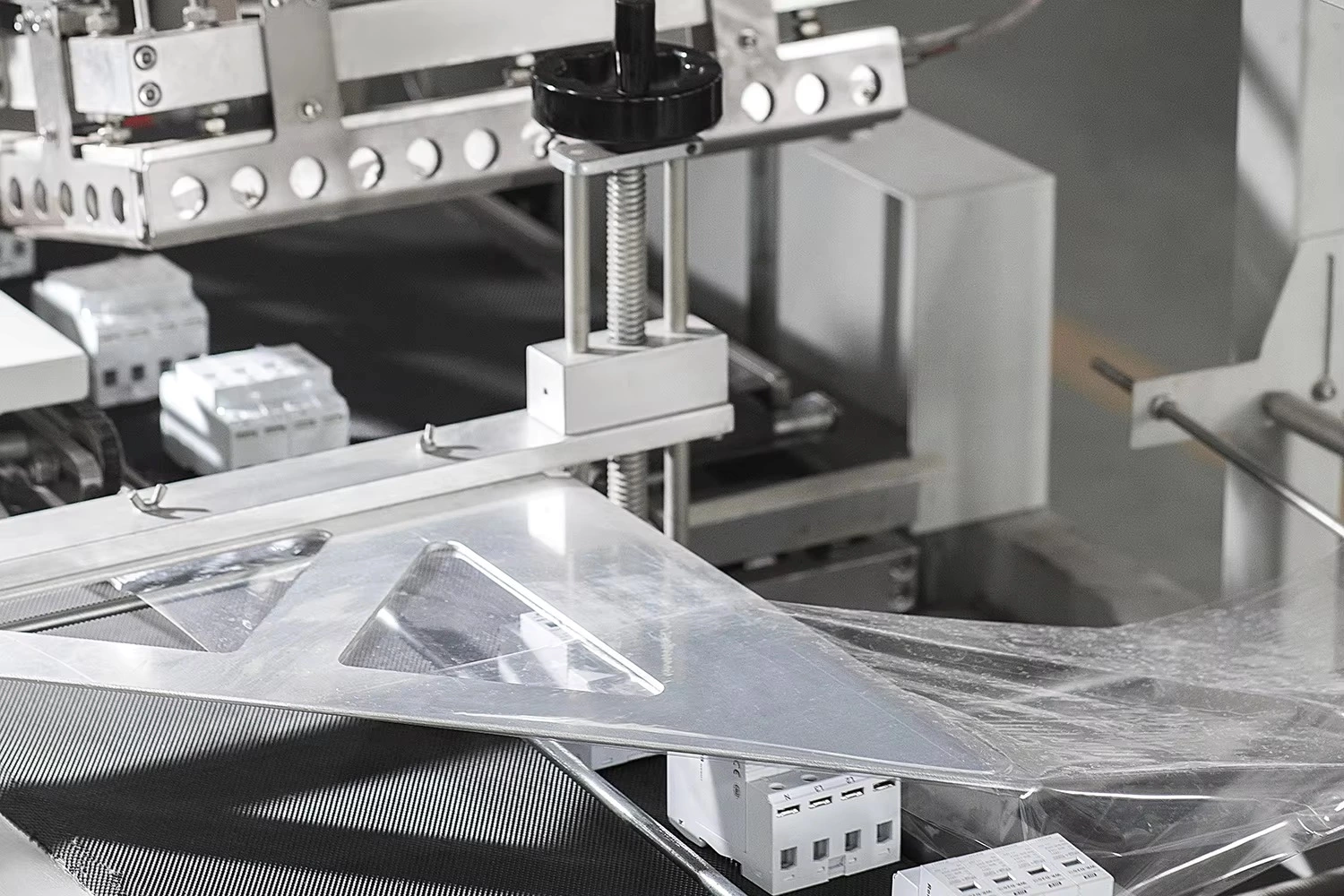

| 4.Laser or pad printing | 5. Hot Packaging | 6. Packaging |
