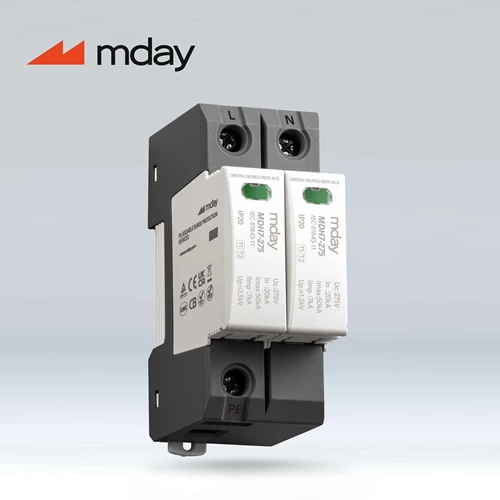

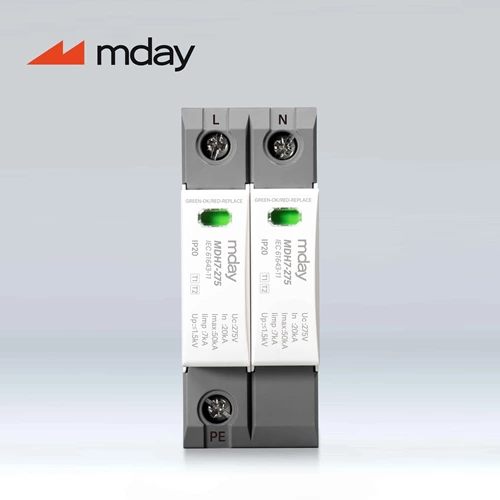

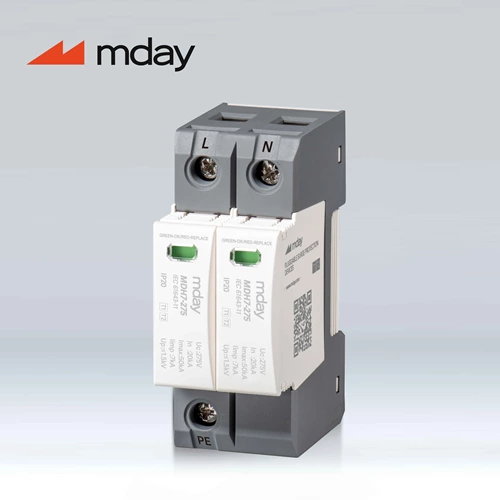

Tvss Under Over Voltage Protection Device Spd Connection 2p
- · MODEL:
- MDH7-275
- · TYPE:
- T1+T2
- · Iimp:
- 7kA
- · In/Imax:
- 20kA/50kA
- · Conform to:
- IEC/EN 61643-11,GB/T 18802.11
- · Certification:
- UKCA/CE/CB/TUV/ROHS/REACH/CQC
- · Delivery Time:
- 1-100PCS within 7 days/100-1000PCS within 10 days
- · Payment Terms:
- L/C, T/T, Western Union, Paypal
- · Supply Ability:
- 100000 pcs per month
| Mday Type | MDH7-275 | MDH7-320 | MDH7-385 | MDH7-440 | ||
| Product Description | Type1+2 | Surge Ptotective Device | ||||
| AC Operating Voltage | Un | 230Vac | 230Vac | 230Vac | 230Vac | |
| Maximum Continuous Operating Voltage | Uc | 275Vac | 320Vac | 385Vac | 440Vac | |
| Temporary Overvoltage Test Value | Ut | 335Vac | 335Vac | 580Vac | 580Vac | |
| Temporary Overvoltage Test Value | Ut | 440Vac | 440Vac | 770Vac | 770Vac | |
| Nominal Discharge Current(8/20μs) | In | 20kA | ||||
| Maximum Discharge Current(8/20μs) | Imax | 50kA | ||||
| Lightning Impulse Current(10/350μs) | Iimp | 7kA | 7kA | 7kA | 6.25kA | |
| Voltage Protection Level | Up | ≤1.5kV | ≤1.6kV | ≤1.8kV | ≤2.0kV | |
| Short-circuit current rating | Isccr | 25kA | ||||
| heat tripping device | Insertion | |||||
| Max. Backup Fuse | 125A gL/gG | |||||
| Mechanical properties | ||||||
| Product size | see the photo as below | |||||
| Wiring method | screw terminal 2.5-25mm² | |||||
| Normal/Fault display | colourless/red | |||||
| Maximum remote signal load voltage/current | 250V/0.5A[AC],30V/3A[DC] | |||||
| Maximum cross-sectional area of remote signal connection line | 1.5mm2 | |||||
| Installation | 35mm DIN Rail | |||||
| Operating Temperature range | Tu | -40-+85° | ||||
| Protection level | IP20 | |||||
| Enclosure material | Thermoplastic material, compliant with UL94-V0 | |||||
