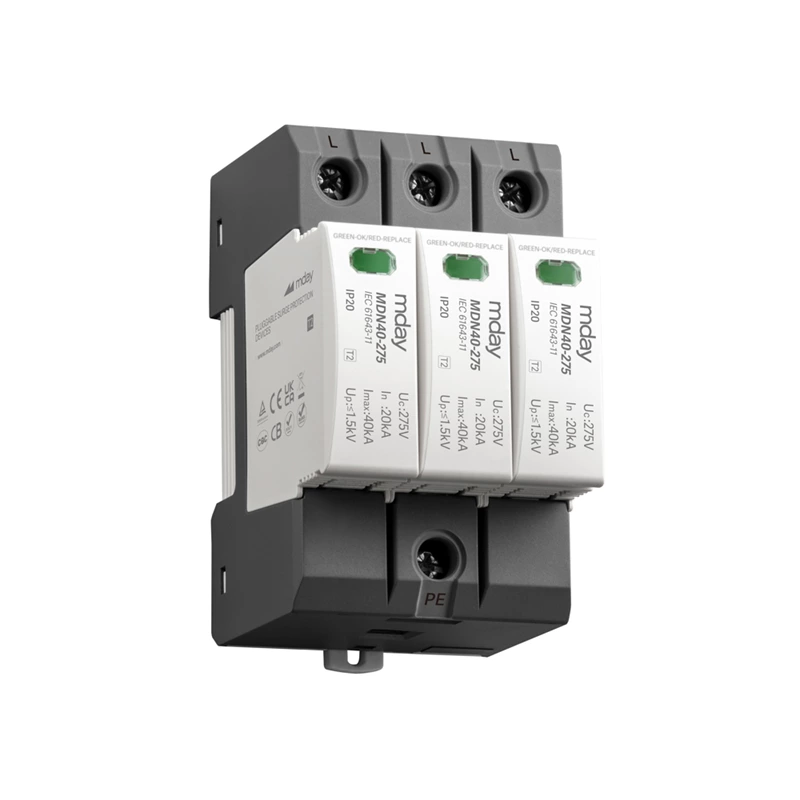

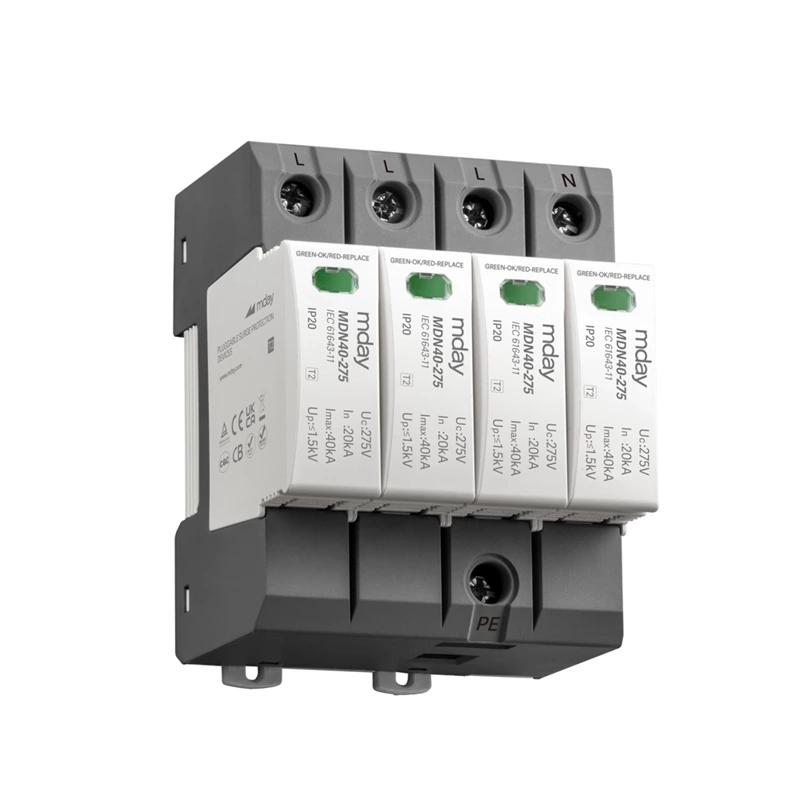

Type2 AC Surge Protective Device
Type2 3 phase spd price used at secondary distribution boards to transfer indirect lightning current. Most of them are used in medium lightning risk areas such as power distribution boards inside buildings, office buildings, and residential buildings, etc.
Nominal Discharge Current [ In ]: 20kA
Maximum Discharge Current [ Imax ]: 40kA
Operating Voltage [ Un ]: 230V
Maximum Continuous Operating Voltage[ Uc ]: 275V/320V/385V/420V
Pluggable Module, Built-in Thermal trip, Fault indication, Remote warning optional.

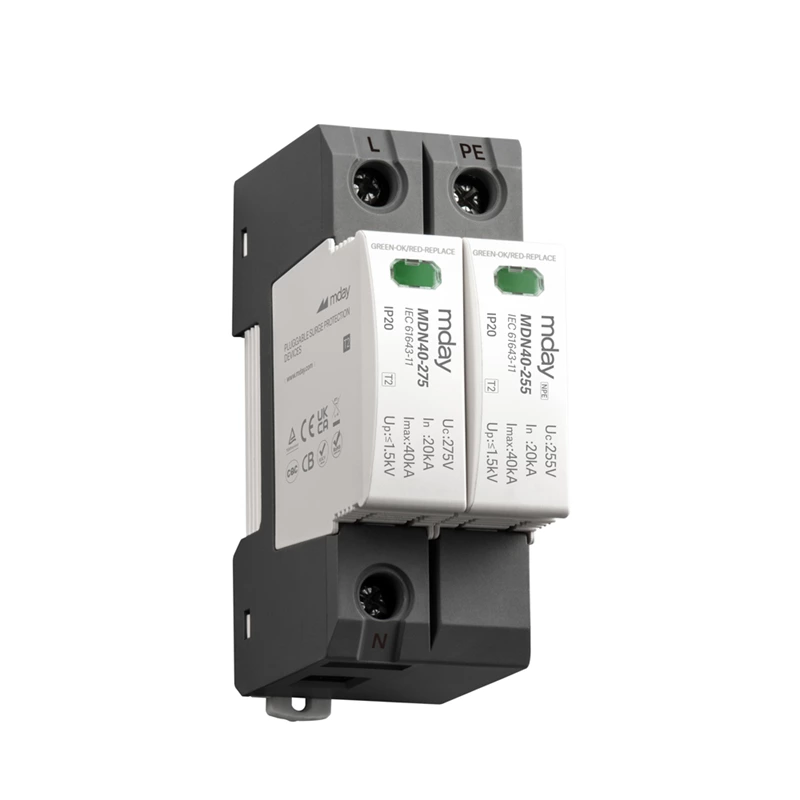

MDN40 1P+NPE 275V Surge Protection Device Thunder Protector Power Surcharge Protector
Model: MDN40-AC 1P+NPE
