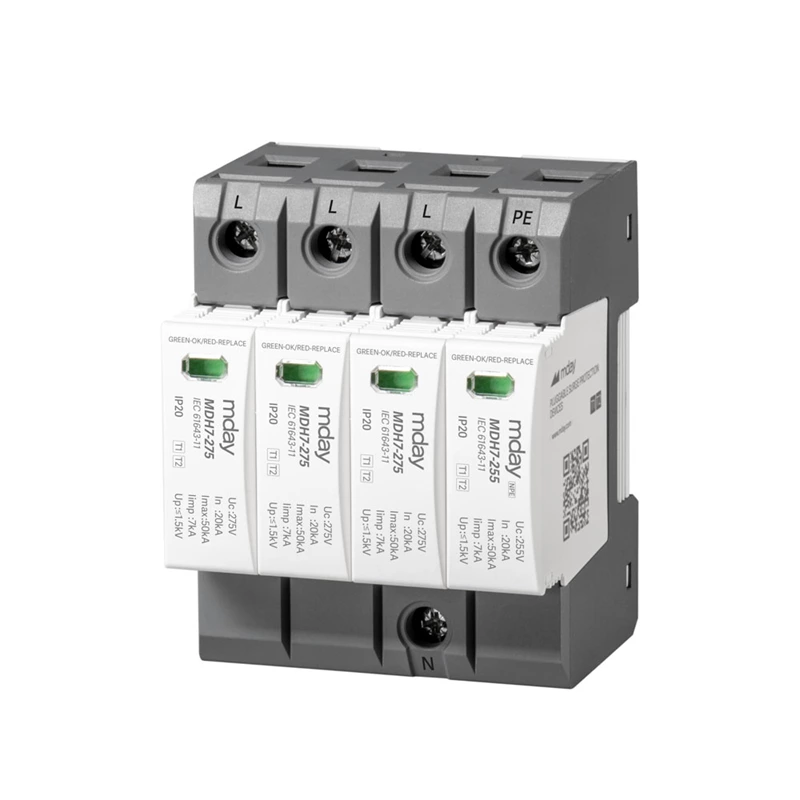

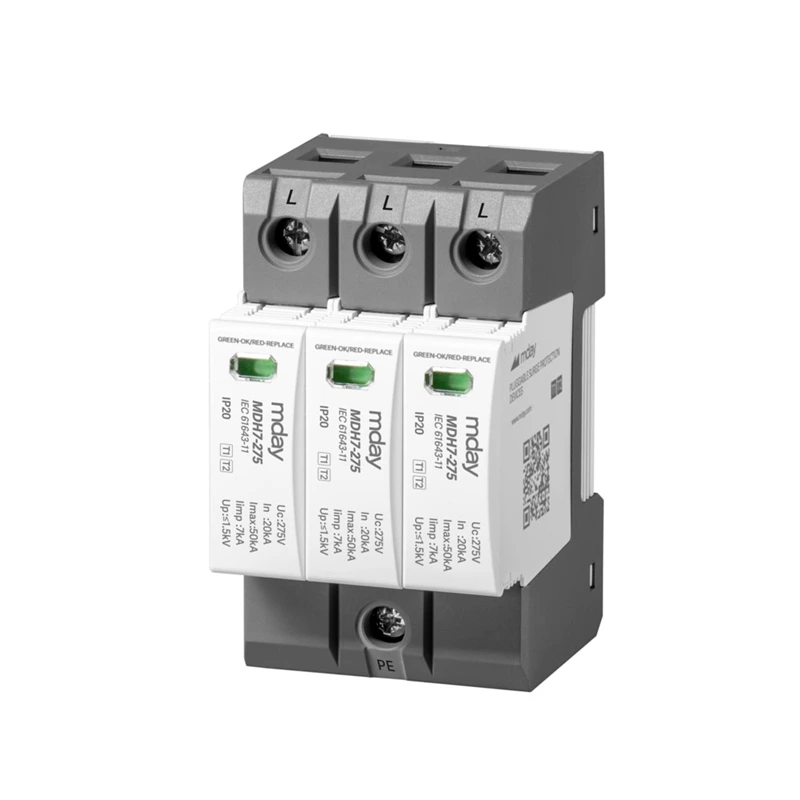

Type1+2 AC Surge Protective Device
Type 1+2 spd protection device used in the main distribution board to transfer direct lightning current. Most of them are used in high lightning risk areas, external power system entrances, industrial plants, etc.
Nominal/Maximum Discharge Current [ In ] / [ Imax ]: 20kA/50kA
Impulse Discharge Current [ Iimp ]: 7kA
Operating Voltage [ Un ]: 230V
Maximum Continuous Operating Voltage[ Uc ]: 275V/320V/385V/420V
Pluggable Module, Built-in Thermal trip, Fault indication, Remote warning optional.
T2 1 Pole 385V 20KA 40KA Voltage Lightning protection Surge Protector
Model: MDH7-AC 1P
2P 320v voltage SPD device fuse power strip tower AC surcharge protector
Model: MDH7-AC 2P

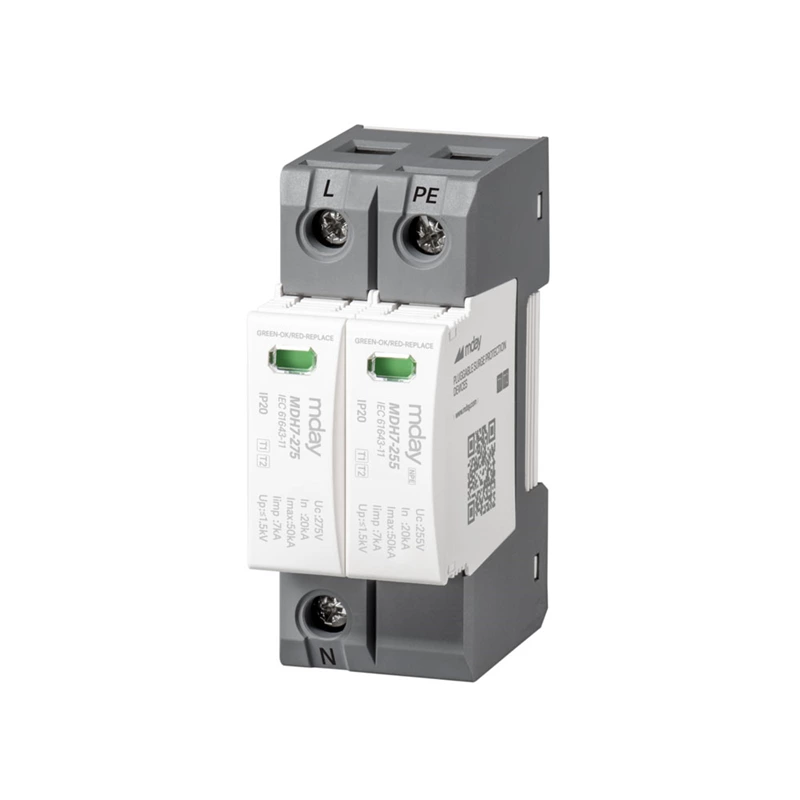

MDH7-AC T1T2 1P+NPE 275V surge protector 20KA 50KA SPD mov lightning surge arrester
Model: MDH7-AC 1P+NPE
