T2 1P Uc 275V 40KA 80KA Surge Protective Device Power AC SPD
- · MODEL:

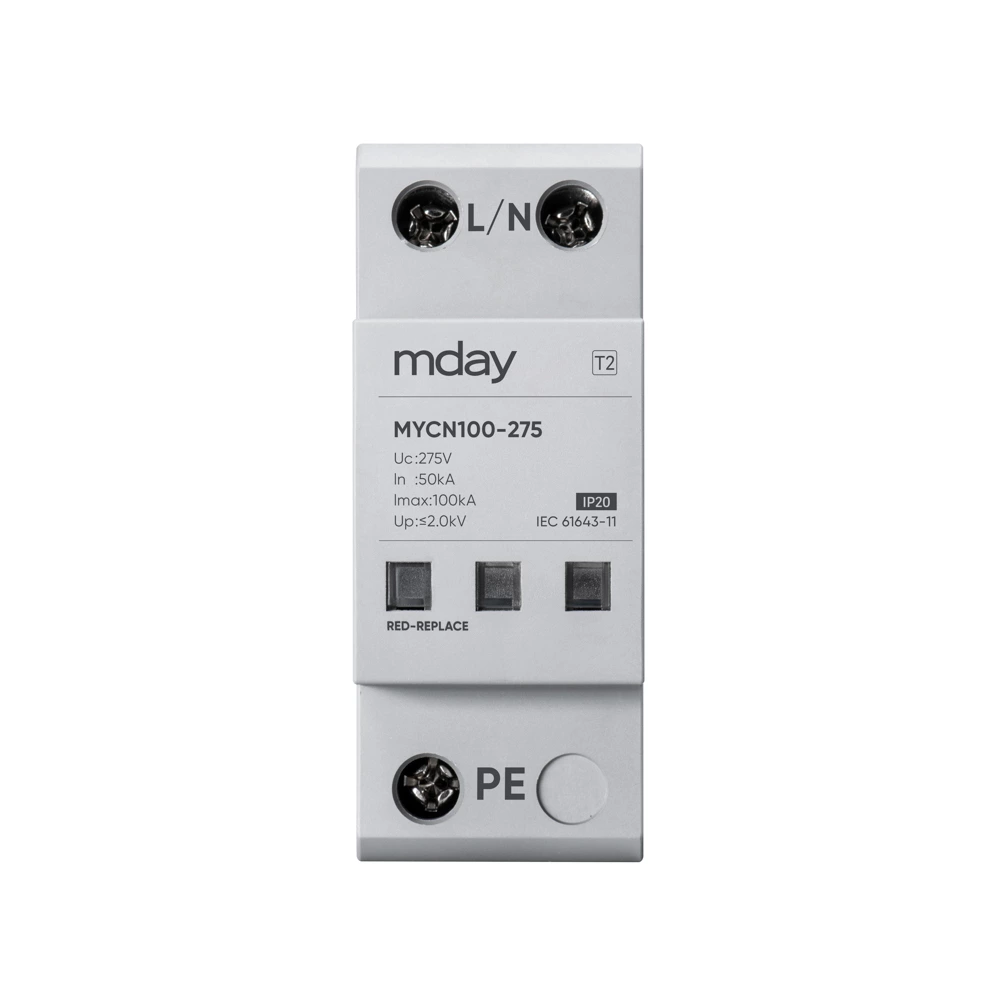

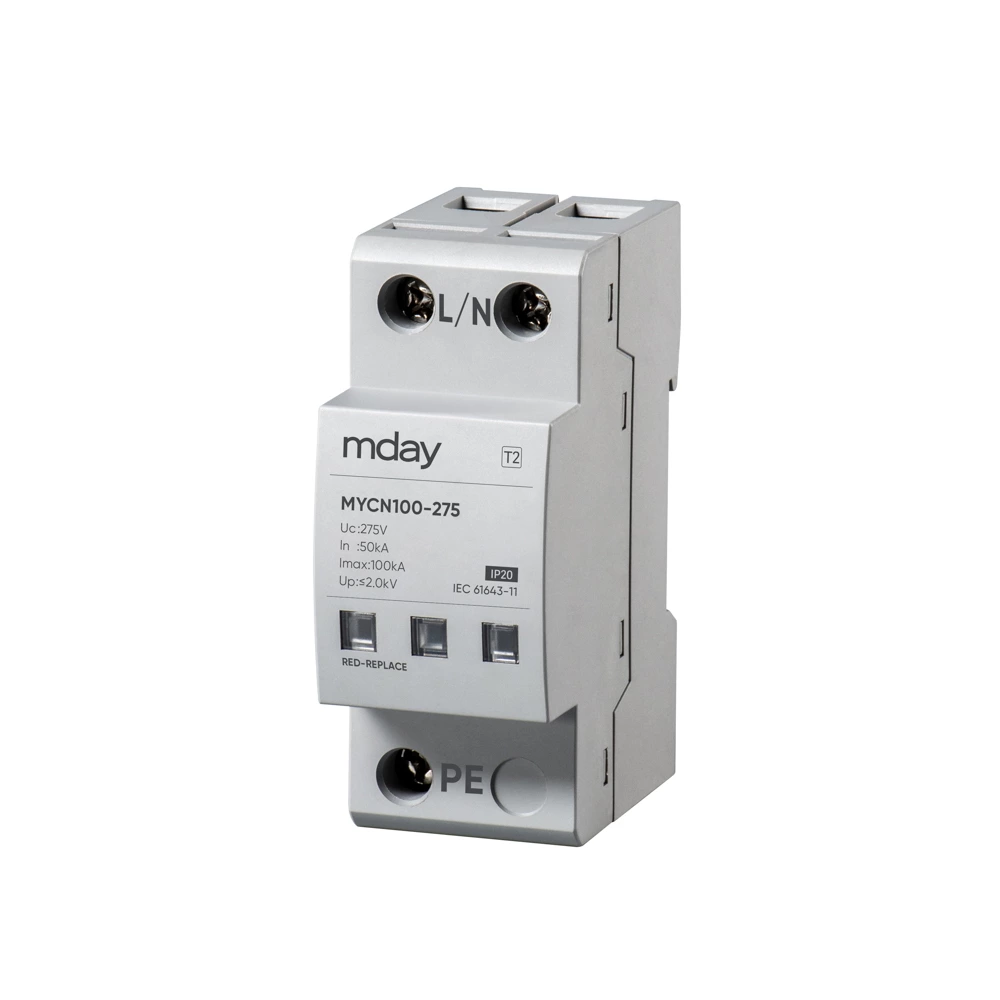

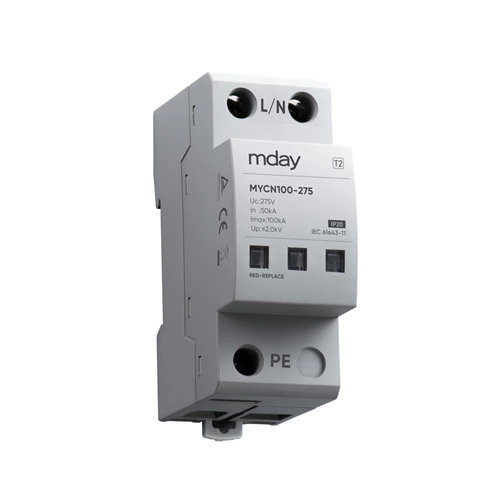

- MYCN100-275 1P
- · TYPE:
- T2
- · In/Imax:
- 50kA/100kA
- · Conform to:
- IEC/EN 61643-11,GB/T 18802.11
- · Certification:
- UKCA/CE/CB/TUV/ROHS/REACH/CQC
- · Delivery Time:
- 1-100PCS within 7 days/100-1000PCS within 10 days
- · Payment Terms:
- L/C, T/T, Western Union, Paypal
- · Supply Ability:
- 100000 pcs per month
| Mday Type | MYCN100-275 | MYCN100-320 | MYCN100-385 | MYCN100-440 | ||
| Product Description | Type2 Surge Ptotective Device | |||||
| AC Operating Voltage | Un | 230Vac | 230Vac | 230Vac | 230Vac | |
| Maximum Continuous Operating Voltage | Uc | 275Vac | 320Vac | 385Vac | 440Vac | |
| Temporary Overvoltage Test Value TOV-5s[Tolerance] | Ut | 335Vac | 335Vac | 500Vac | 580Vac | |
| Temporary Overvoltage Test Value TOV-120min[Disconnection] | Ut | 440Vac | 440Vac | 650Vac | 770Vac | |
| Nominal Discharge Current(8/20μs) | In | 50kA | ||||
| Maximum Discharge Current(8/20μs) | Imax | 100kA | ||||
| Voltage Protection Level | Up | ≤2.0kV | ≤2.2kV | ≤2.5kV | ≤2.8kV | |
| Short-circuit current rating | Isccr | 25kA | ||||
| heat tripping device | Insertion | |||||
| Max. Backup Fuse | 125A~160A gG Fuse | |||||
| Mechanical properties | ||||||
| Product size | see the photo as below | |||||
| Wiring method | screw terminal 2.5-25mm² | |||||
| Normal/Fault display | green/red | |||||
| Maximum remote signal load voltage/current | 250V/0.5A[AC],30V/3A[DC] | |||||
| Maximum cross-sectional area of remote signal connection line | 1.5mm2 | |||||
| Installation | 35mm DIN Rail | |||||
| Operating Temperature range | Tu | -40-+85° | ||||
| Protection level | IP20 | |||||
| Enclosure material | Thermoplastic material, compliant with UL94-V0 | |||||
Mday's adopts fully automatic machine double-sided soldering technology
Tripping side：
1. Automatic soldering technology for both sides, stable connection,and no false soldering.
2. Adopt chromium-free tin material, more green and environmentally friendly.
3. Double-layer thickened copper design, high flow, more stable.
Chip side：
1. Accurate parameters, every data is exactly the same as the actual product.
2. Use high-efficiency encapsulation chip design to improve heat dissipation performance and extend service life.
Mday use thermoplastic materials and conform to UL94-V0.Every enclourse can pass the harsh glow wire test.
Mday signs partner agreement with EPCOS for next-generation surge，protective device's MOV development
Wiring diagram
Mday’s Product size & Packing
Mday Can Provide OEM Service
-Customize with your LOGO /model / specific parameters on the product
-Customize with your LOGO /model / QR code/Product Code on the stickers
-Provide free packaging design and customization services
