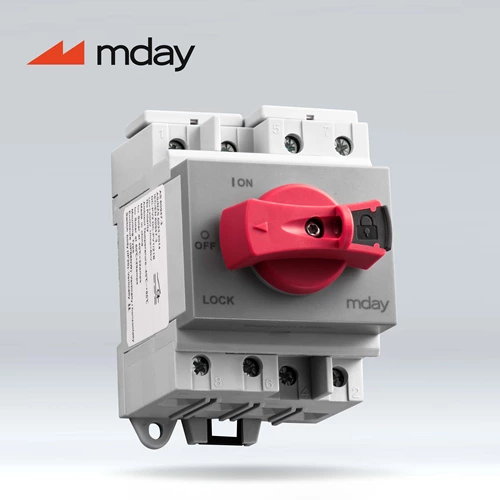

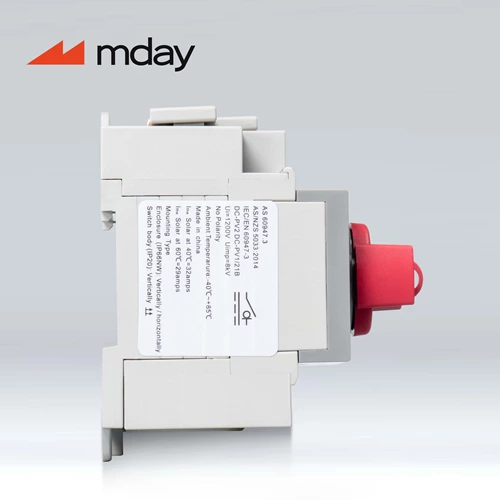

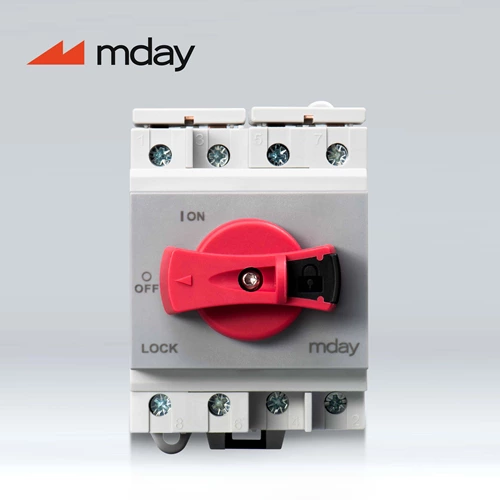

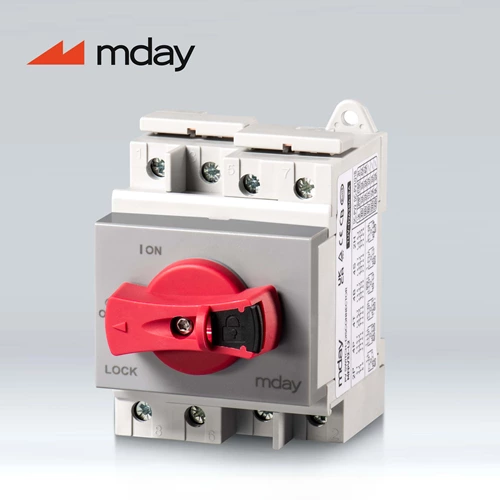

Mday Isolator Switch 4poles 32a High Quality Ac Waterproof Rotary Isolation Disconnect Switch
- · MODEL:
- MFPV32-L2
- · Rated Voltage:
- 1000V
- · Rated Thermal Current:
- 16A/20A/32A
- · Rated Insulation Voltage:
- 1000V
- · Number Of Poles:
- 4-pole
- · Rated Impulse Withstand Voltage:
- 8000V
- · Rated Short-circuit Making Capacity:
- 1KA,1S
- · Electrical Life:
- 300 cycles
- · Mechanical Life:
- 10000 cycles
- · Pollution Level:
- 3
- · IP Rating:
- IP66
- · Number Of Electrodes:
- 4
- · Rated Current:
- 32, 16, 20
Product Description
DC Isolator Switch L2 Series
Disconnector
Features/Benefits
* Professional fuse manufacturer 12 years
* Direct factory price
* ODM/OEM available
* IP20 protection grade
* Direct factory price
* ODM/OEM available
* IP20 protection grade
* Din rail installation
* Handle can be locked in "off" position
* 2-bar, 4-bar available (single I double string)
* 2-bar, 4-bar available (single I double string)
* Standard: IEC60947-3, AS60947.3
* DC-PV2，DC-PV1，DC-21B
*16A，25A，32A，1000V DC
 |
 |
 |
|

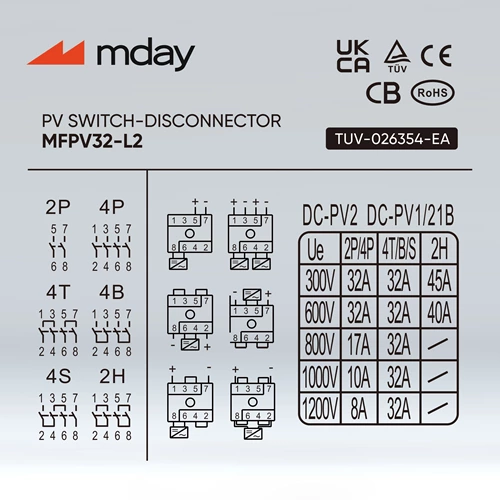

Electrical Characteristics
|
||
|
Type
|
MYPV 32-L2
|
|
|
Function
|
lsolator, control
|
|
|
Standard
|
IEC60947-3，AS60947.3
|
|
|
Utilization Category
|
DC-PV2/DC-PV1/DC-21B
|
|
|
Rod
|
4P
|
|
|
Rated Frequency
|
DC
|
|
|
Rated Operating Voltage (Ue)
|
300V、600V、800V、1000V、1200V
|
|
|
Rated Insulation Voltage (Ui)
|
1000V
|
|
|
Conventional Free Air Heat Flux (Ith)
|
//
|
|
|
Rated Short-time Withstand Current (Icw)
|
1kA, 1s
|
|
|
Rated Impulse Withstand Voltage (Uimp)
|
8.0 kV
|
|
|
Overvoltage Category
|
two
|
|
|
Suitability Of Isolation
|
Yes
|
|
|
Polarity
|
There is no polarity, the “+” and “-” polarities are interchangeable.
|
|
|
Color
|
Yellow/grey/white
|
|
|
Service Life/Operation Cycle
|
||
|
Mechanical
|
18000
|
|
|
Electric
|
2000
|
|
|
Installation Environment
|
||
|
Ingress Protection
|
Switch body
|
IP20
|
|
Storage Temperature
|
-40℃~+85℃
|
|
|
Installation Type
|
Vertical or horizontal
|
|
|
Pollution Level
|
3
|
|
Certification
We are the factory
Mday New Energy
is a trusted manufacturer of cross-connect protection components for photovoltaic systems . Our experience working in the electrical industry for more than 12 years allows us to create solar DC components that meet the latest DC standards. Through our focus on the design, production and marketing of solar DC protection, we can bring brand-building photovoltaic protection solutions.
ndependent production of accessories
All accessories of Mday are produced independently, including housings, copper parts and varistor chips, therefore, the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |
Automatic production screw machine installed in injection molding workshop
Own test laboratory
We have test equipment, such as 10/350μs 40KA and 8/20μs 120KA simulated lightning test equipment, high voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customer reference.
 |
 |
 |
| T1 (10/350 μs) and T2 (8/20 μs) tests | 0.5A-3150A voltage test characteristics | Resistance test |
Automatic production line
We have automatic production lines to control the production cycle and product quality of each batch of orders
 |
 |
 |
| 1. Automated assembly line | 2. DC isolator switch | 3. Product testing |
 |
 |
 |
| 4.Laser or pad printing | 5. Hot Packaging | 6. Packaging |
