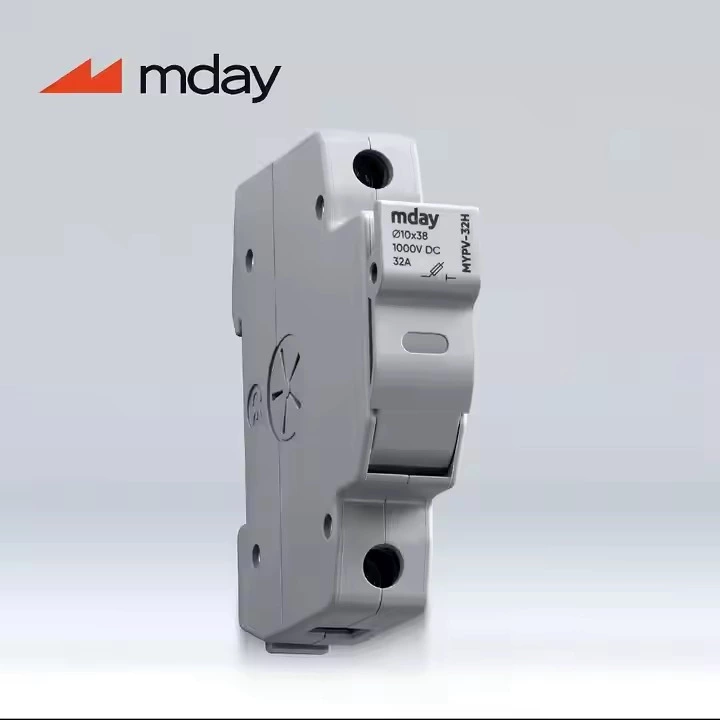

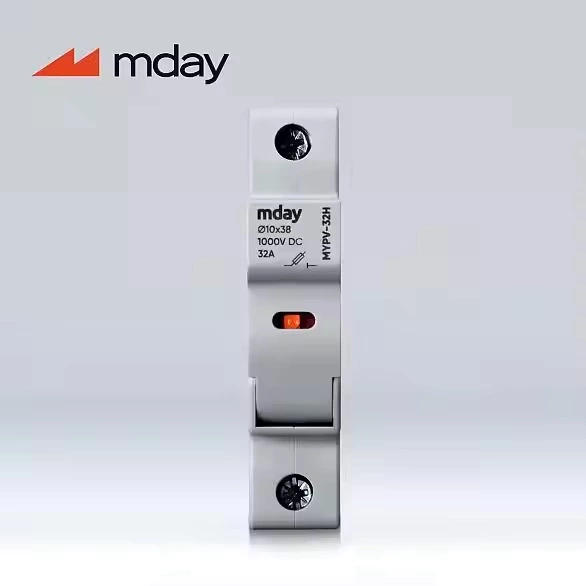

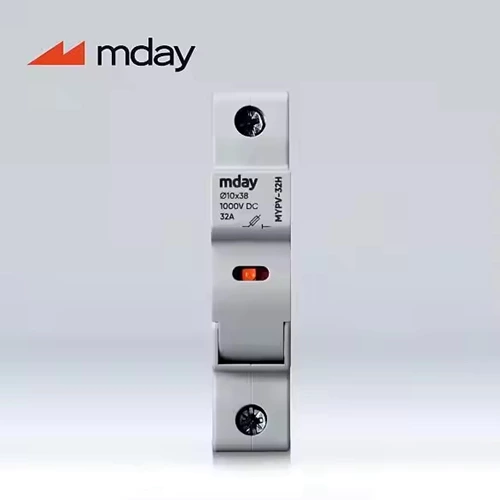

Solar Photovoltaic Protection 32a Dc 1000v Fuse With Fuse Holder Dc Fuse
- · MODEL:
- PV-32
- · country of origin:
- Zhejiang, China
- · brand:
- MDAY
- · use:
- high pressure
- · Safety Standards:
- IEC
- · Breaking Capacity:
- High, 4–15 kA
- · Size:
- 10*38mm
- · Class of Operation:
- gPV
- · Strandard:
- UL248-19 / IEC60269-6
- · Time Constant:
- 1-3ms
- · Disconnection Ability:
- High tube
Product Description
 |
Factory price 1000V low voltage fast acting fuse base fuse holder 10x38 Features/Benefits * 20 years fuse manufacturer * Direct factory price * ODM/OEM available * gPV fast acting fuse * Excellent performance In extreme temperatures * Standard EN/IEC 60269-6 * Time constant below 1 ms * Minimum interrupt rating is 1.3 times * Rated breaking capacity 20kA dc * 35mm rail installation |
 |
 |
 |
|

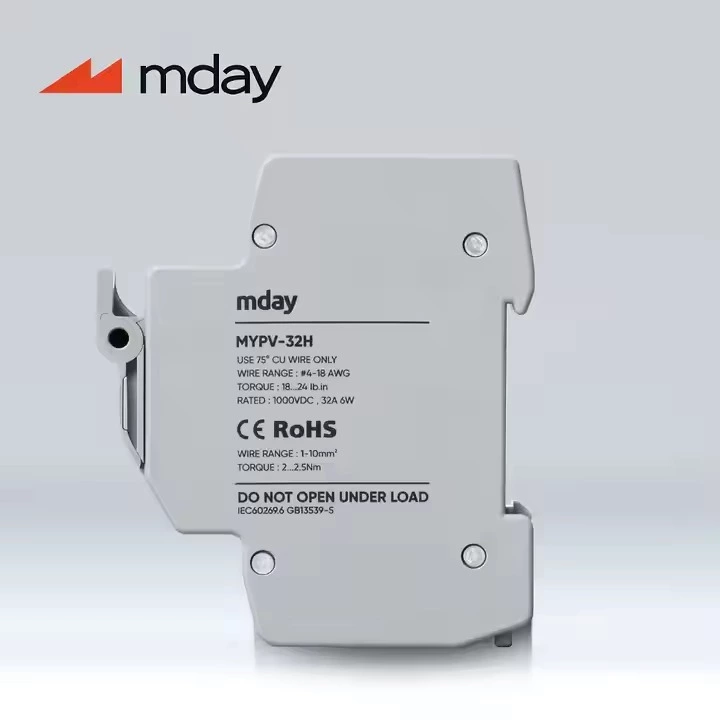

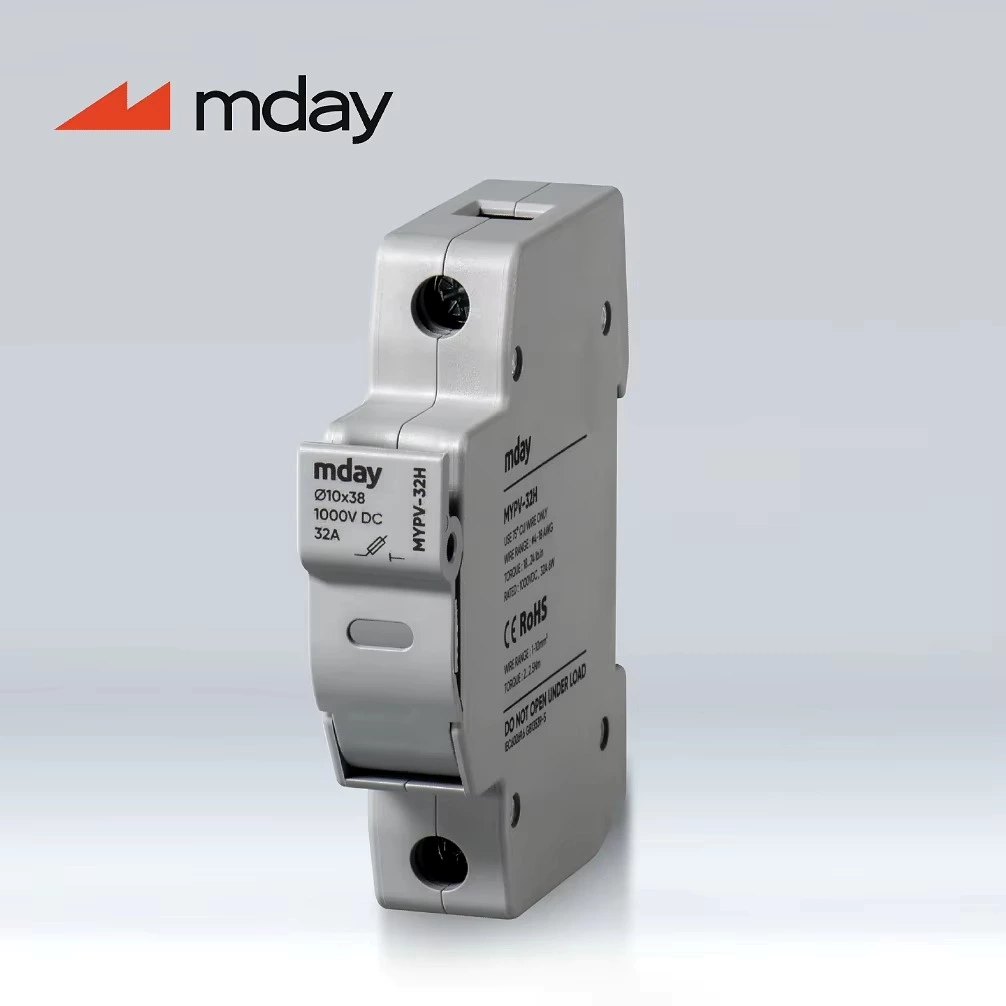

Product Model
|
MYPV- 32H
|
|||
|
Applicable fuse size
|
10*38mm
|
|||
|
Rated voltage
|
1000V
|
|||
|
Rated current
|
1,2,3,4,5,6,8,10,12,15,20,25,32A
|
|||
|
Short-circuit breaking capability
|
33KA
|
|||
|
Maximum power reduction
|
3.5W
|
|||
|
connect
|
2.5-10 mm2
|
|||
|
Operating ambient temperature
|
-30 ~ + 70 °C
|
|||
|
Resistance and moisture
|
Category 2
|
|||
|
Elevation
|
≤ 2000
|
|||
|
Installation
|
TH35-7.5/DIN35 rail installation
|
|||
|
Relative air humidity (RH)
|
At +20 °C, not more than 95% At +40 °C, not more than 50%
|
|||
|
Pollution degree
|
3
|
|||
|
Installation Environment
|
No obvious vibration or impact
|
|||
|

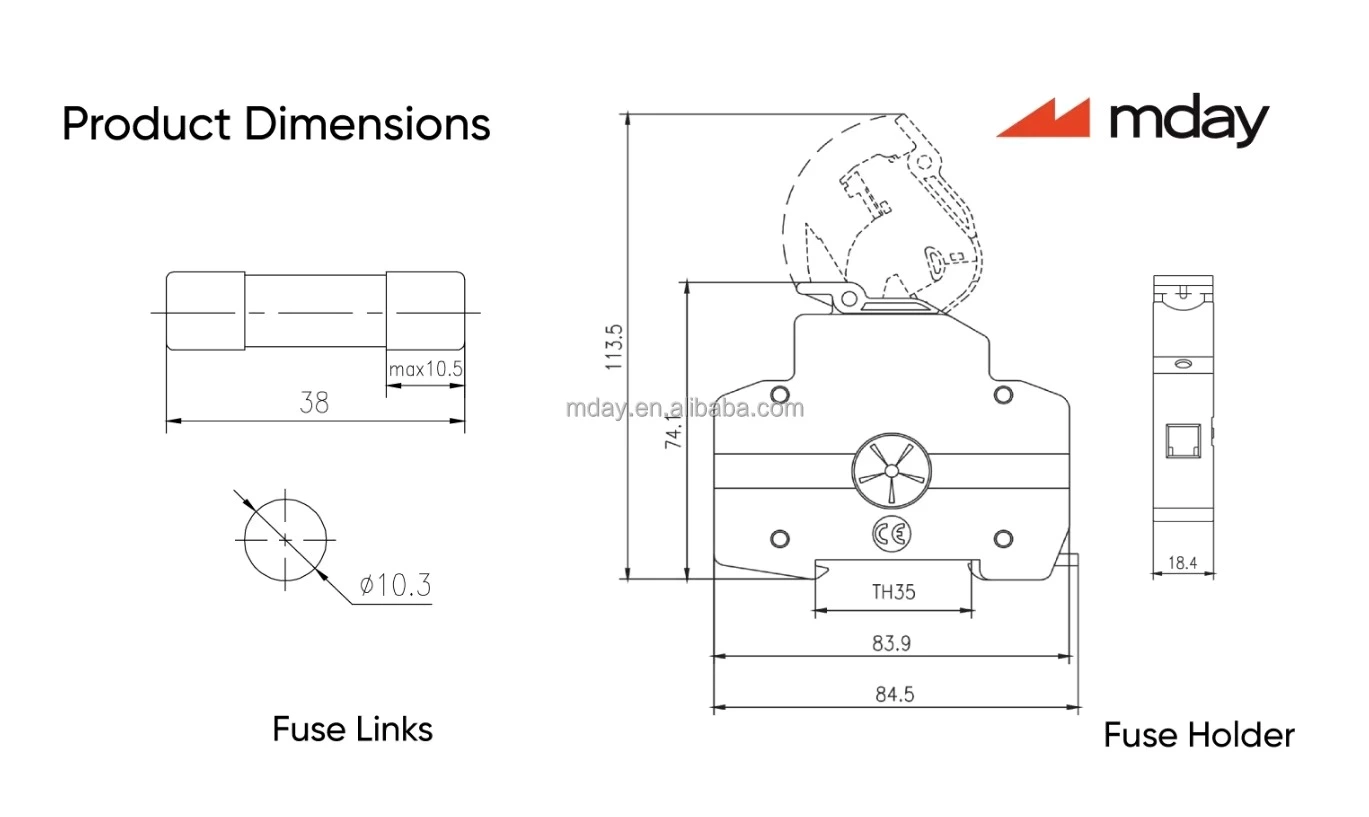

WxHxL and weight (kg)
|
W18.4 x H114 x L84.5mm 0.076kg
|
|||
Before ordering a fuse holder, please ask us for the current rating of the fuse!

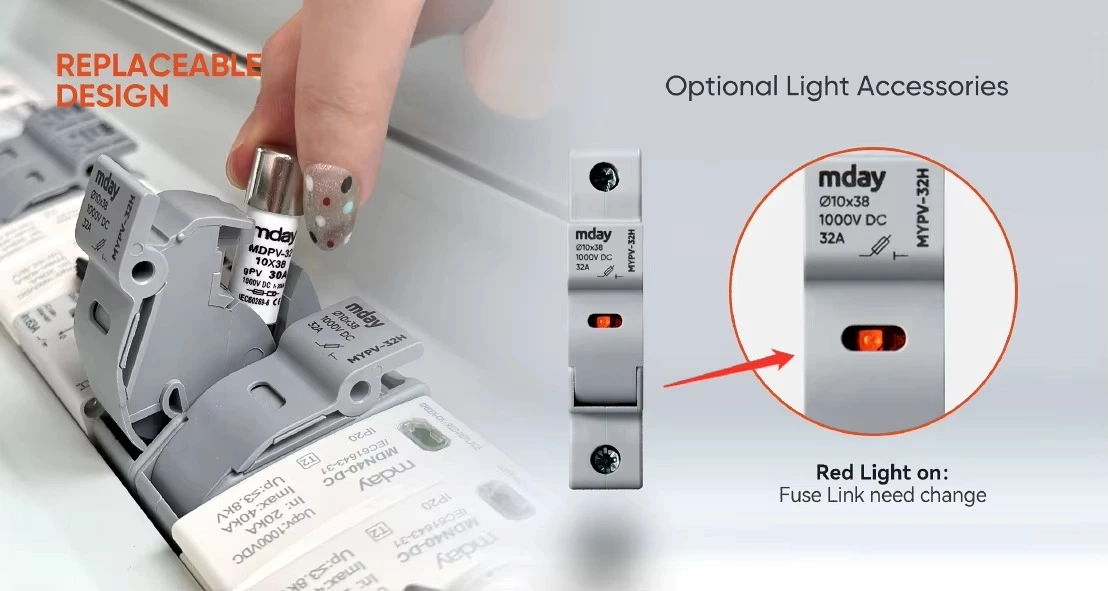

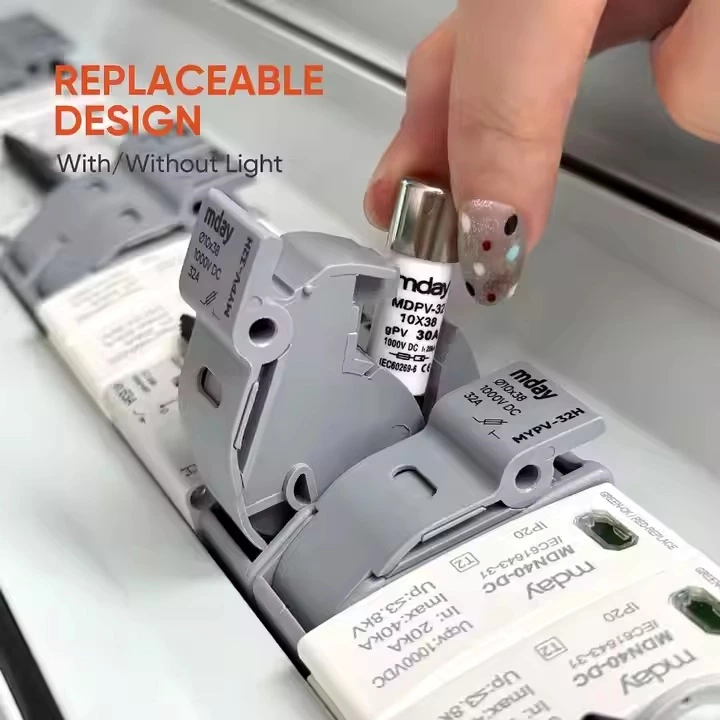

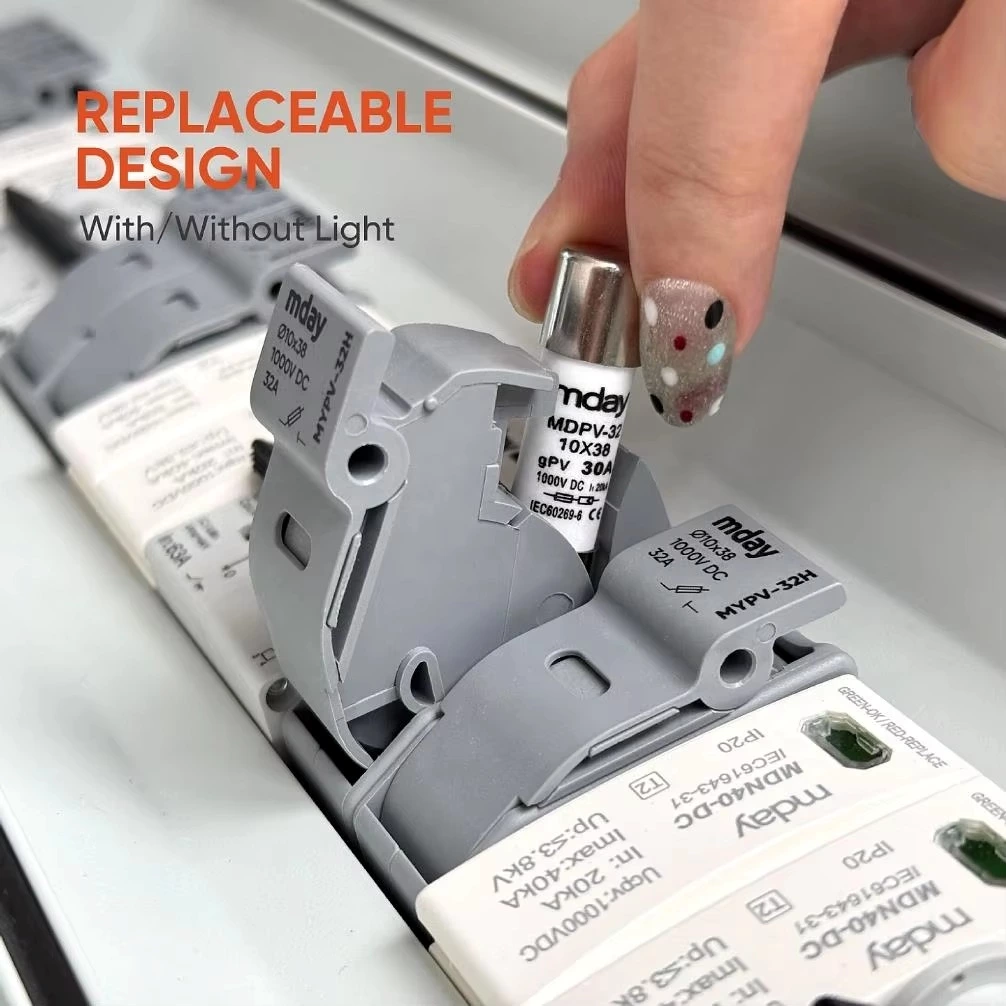

The cylindrical copper cap structure adopts high-quality materials and exquisite workmanship. Both ends are firmly connected to the contact cap, providing more stable and accurate performance, with built-in insulating gasket.

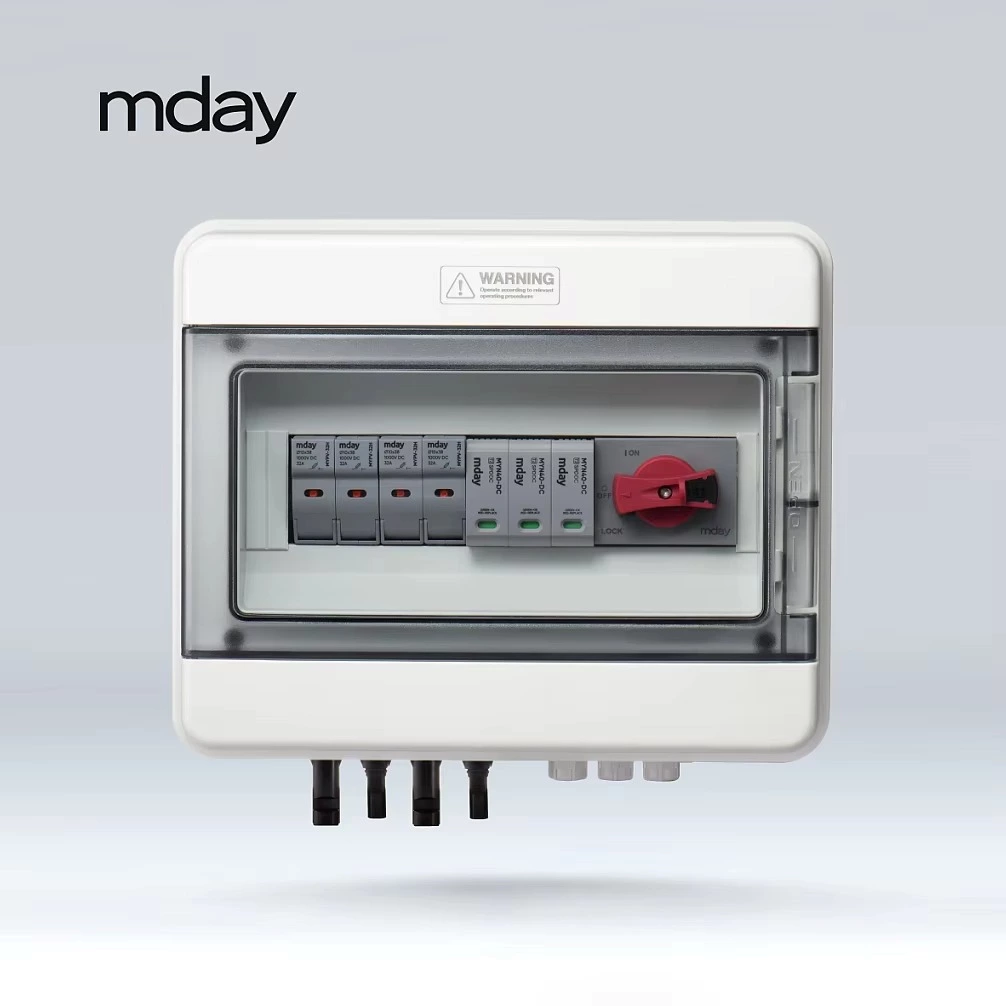

Recommended products
 |
 |
 |

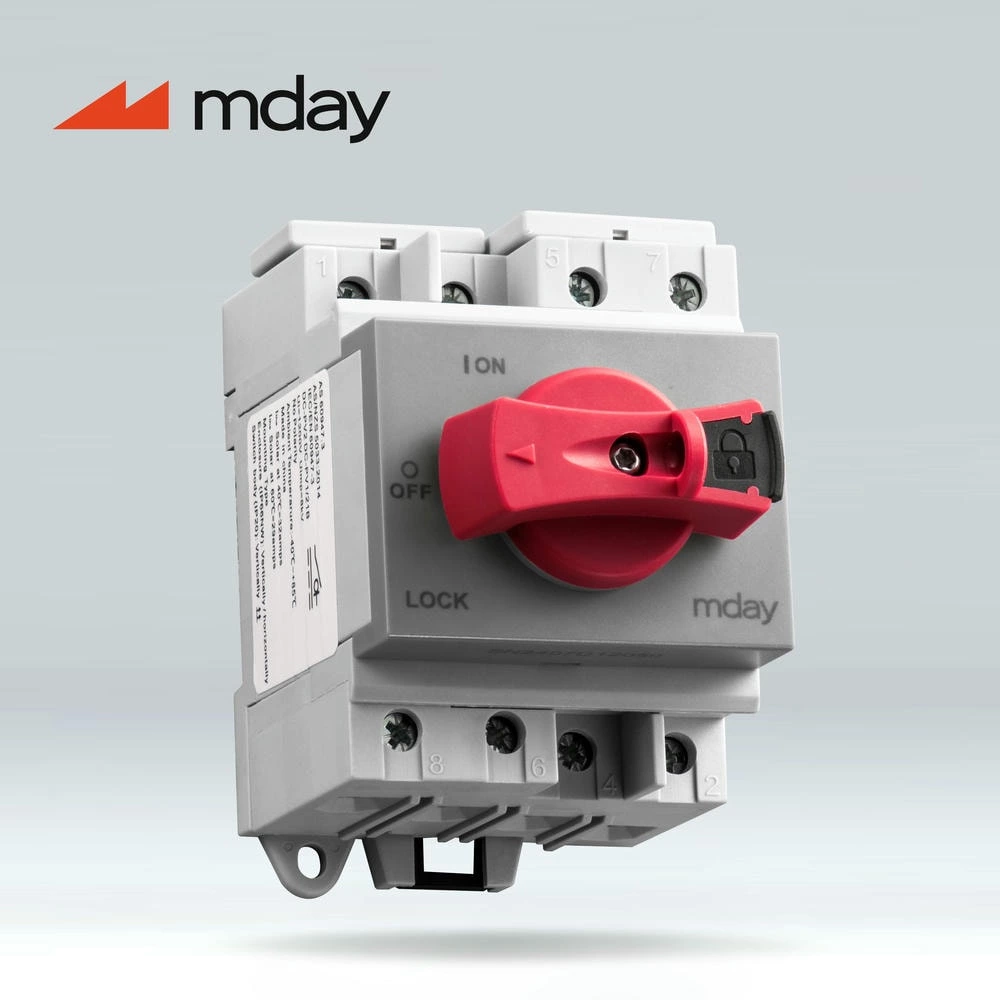

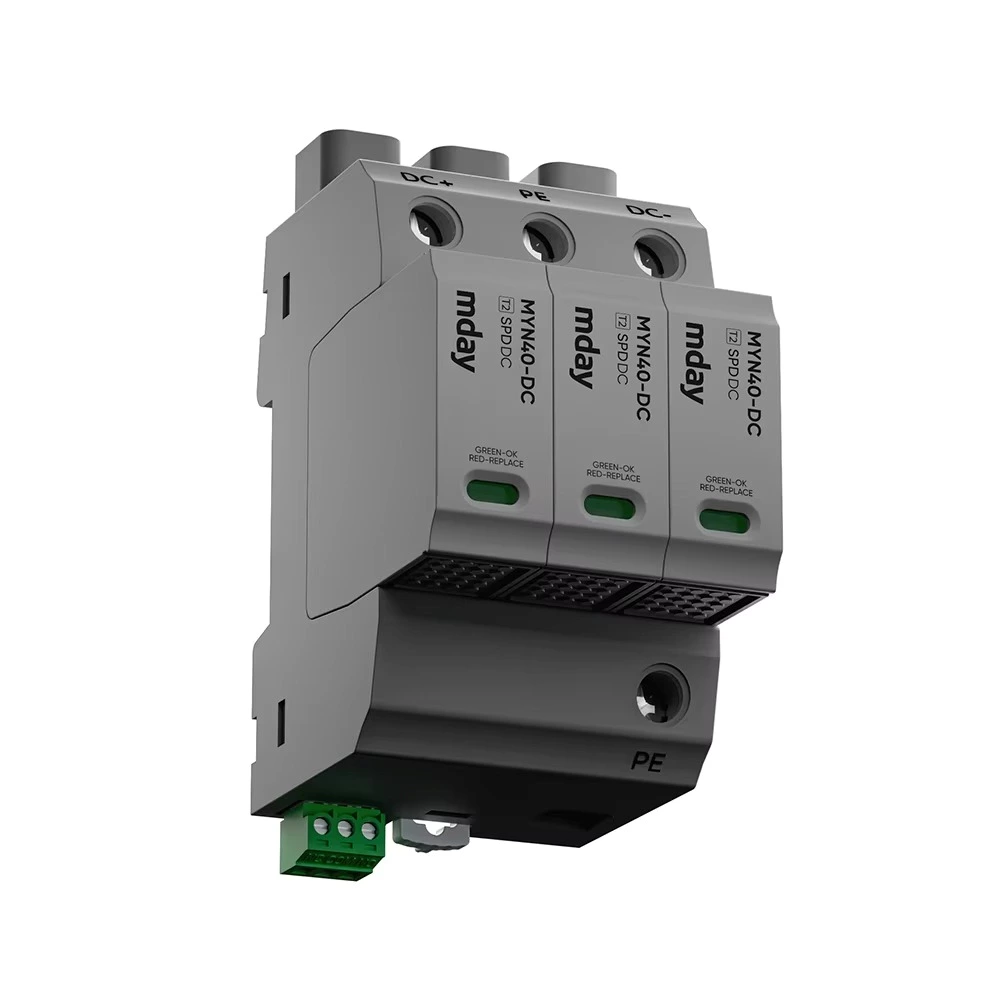

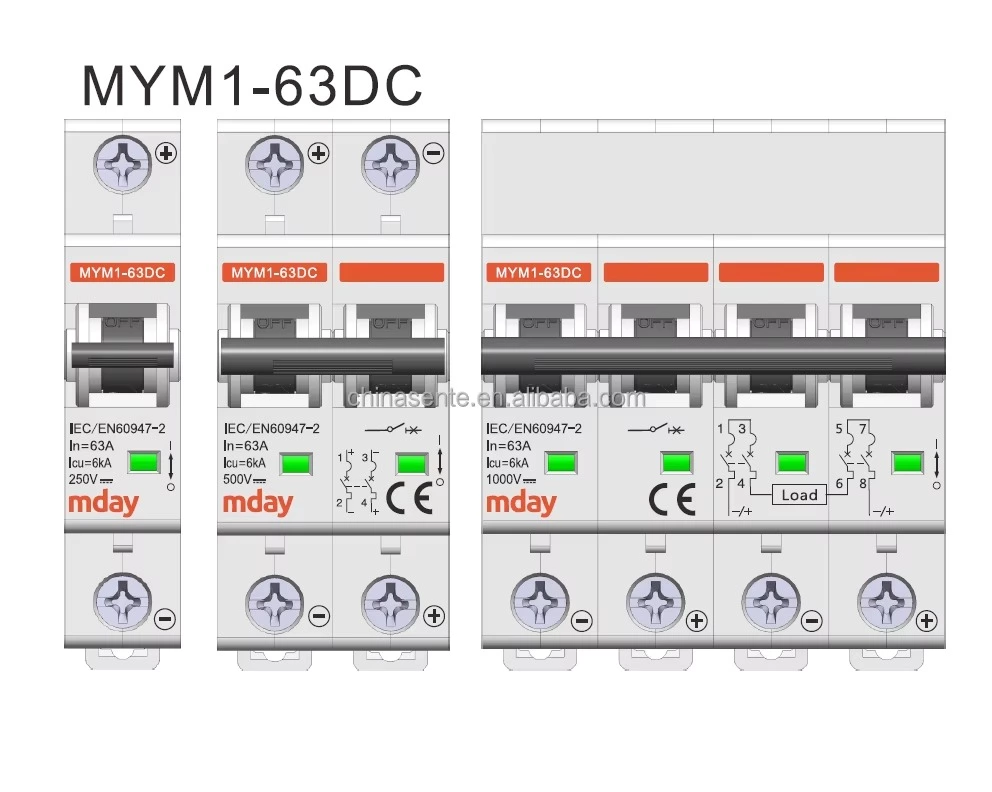

| DC L7 circuit breaker | DC Isolator Switch | DC SPD |
Certification
We are the factory
Mday New Energy
is a trusted manufacturer of surge protection components for photovoltaic systems . Our experience working in the electrical industry for more than 12 years allows us to create surge protection devices and fuses that meet the latest DC standards. Through our focus on the design, production and marketing of solar DC protection, we can bring brand-building photovoltaic protection solutions.
Independent production of accessories
All accessories of SENTE are produced independently, including housings, copper parts and varistor chips, so the quality and production cycle of each order can be fully guaranteed.
 |
 |
 |
 |

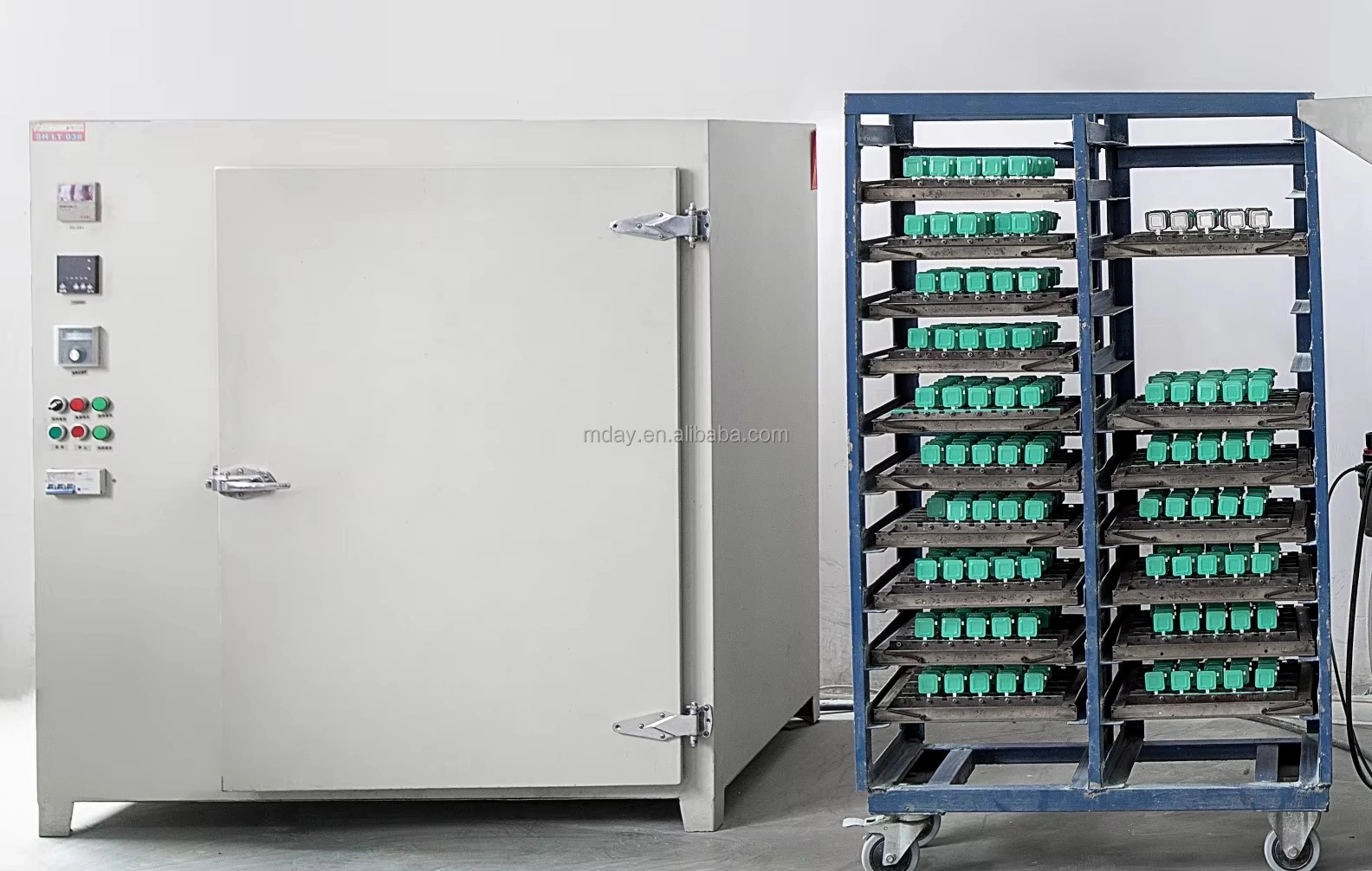

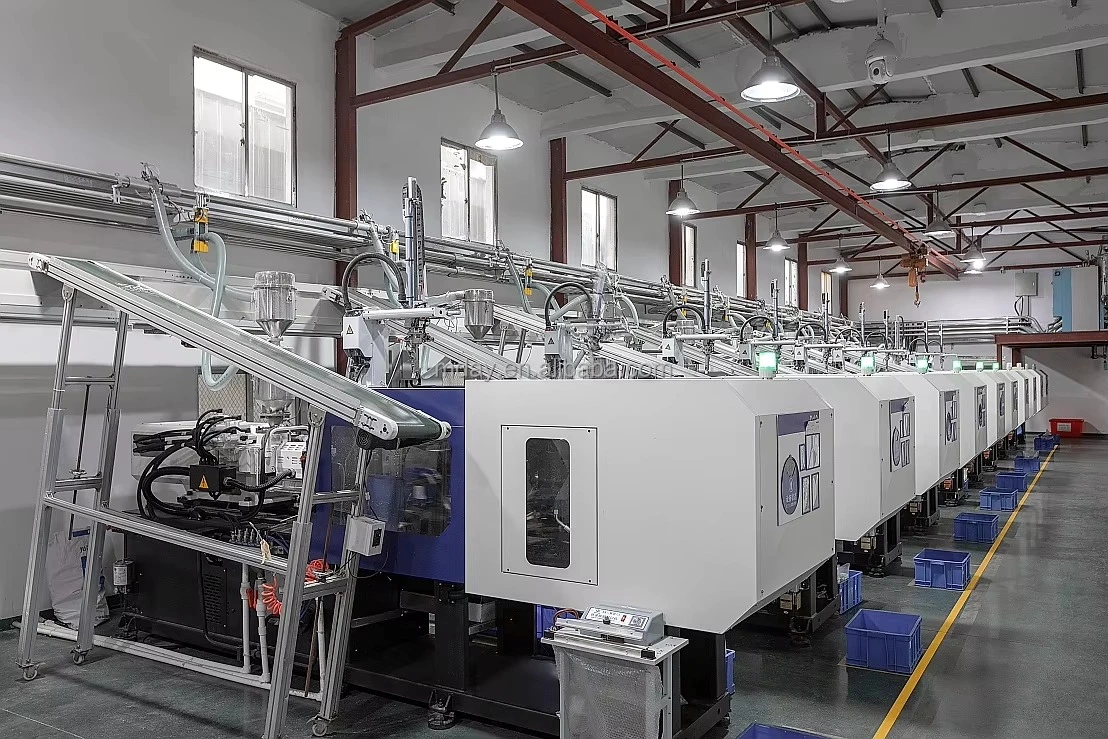

Injection molding workshop fuse installation automatic production power coating

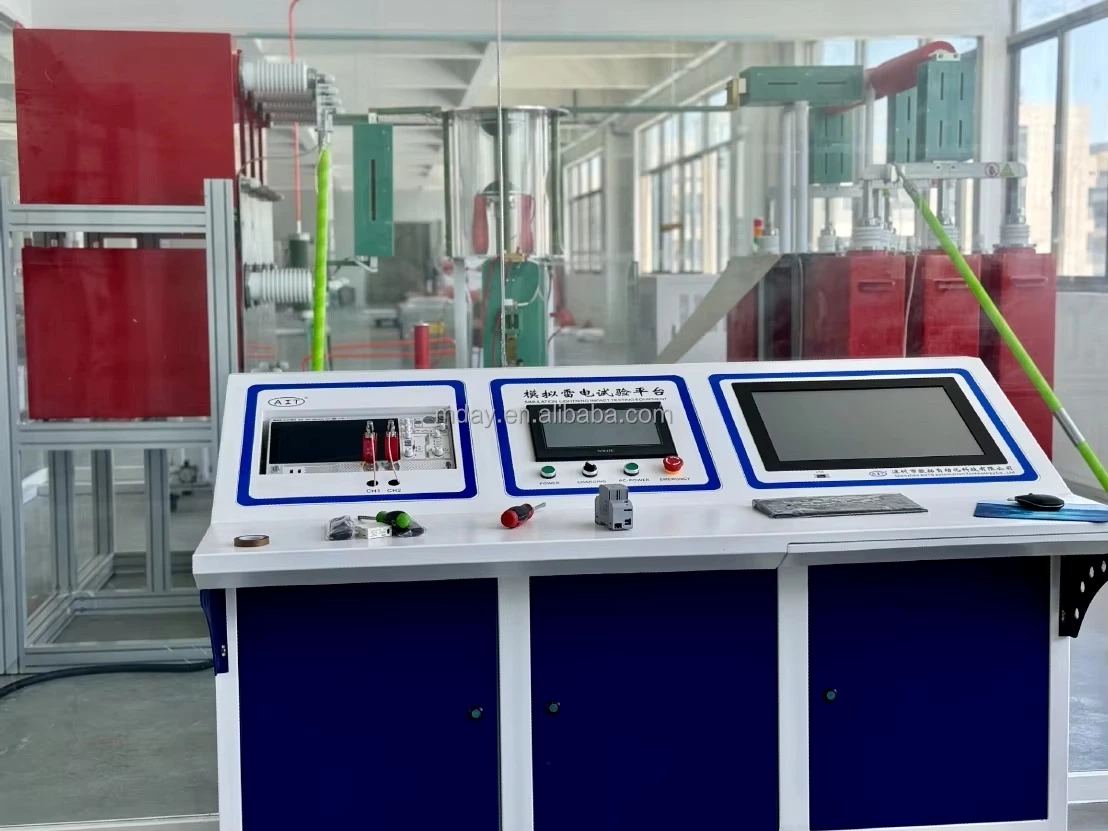

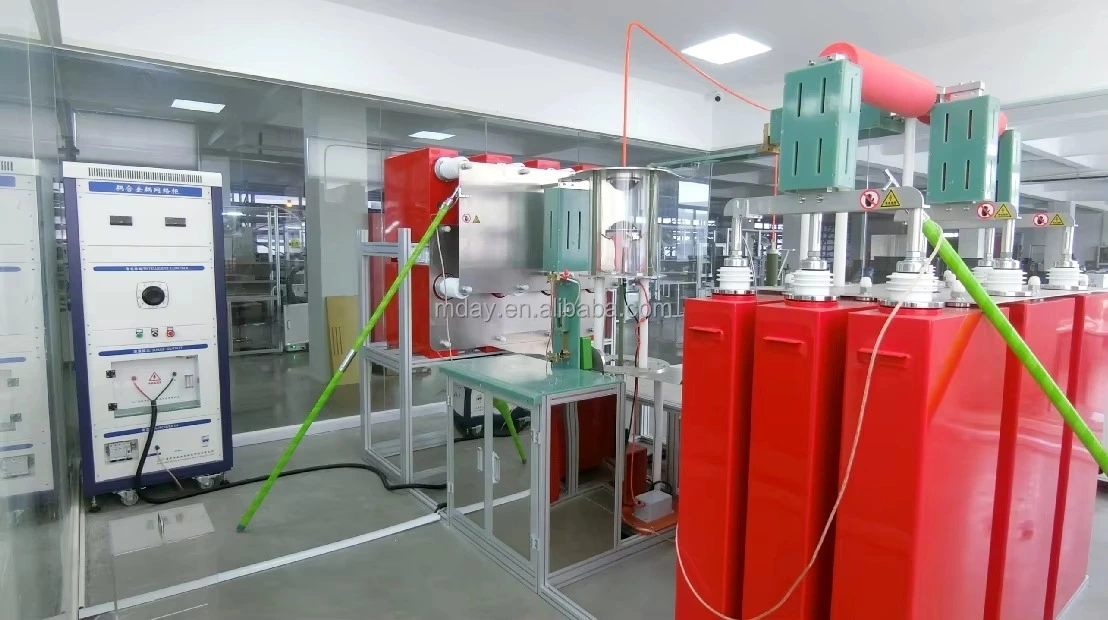

Own test laboratory

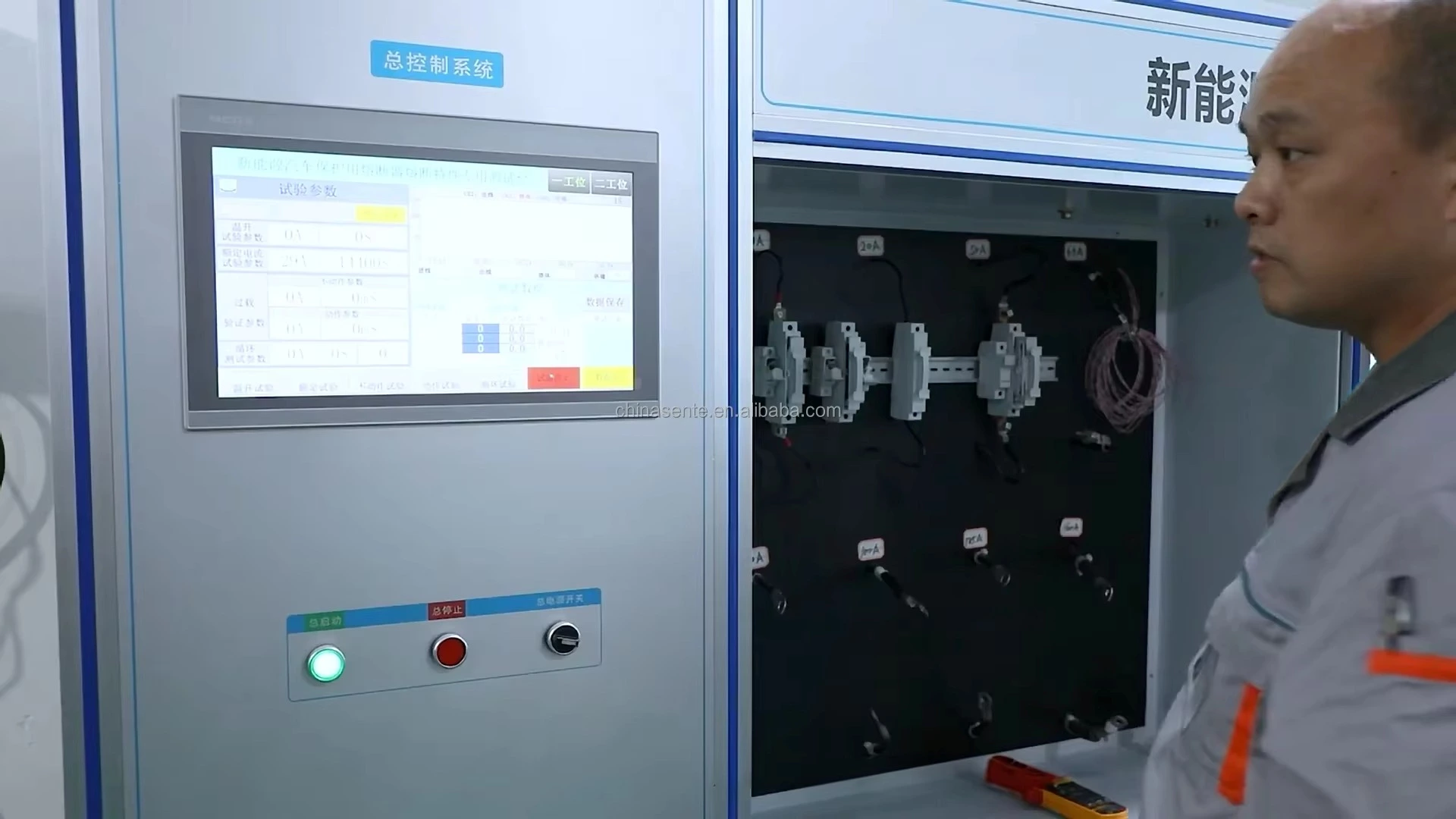

We have test equipment, such as 10/350μs 40KA and 8/20μs 120KA simulated lightning test equipment, high voltage TOV and low voltage TOV. If necessary, we can provide the parameters of each test for customer reference.
 |
 |
 |

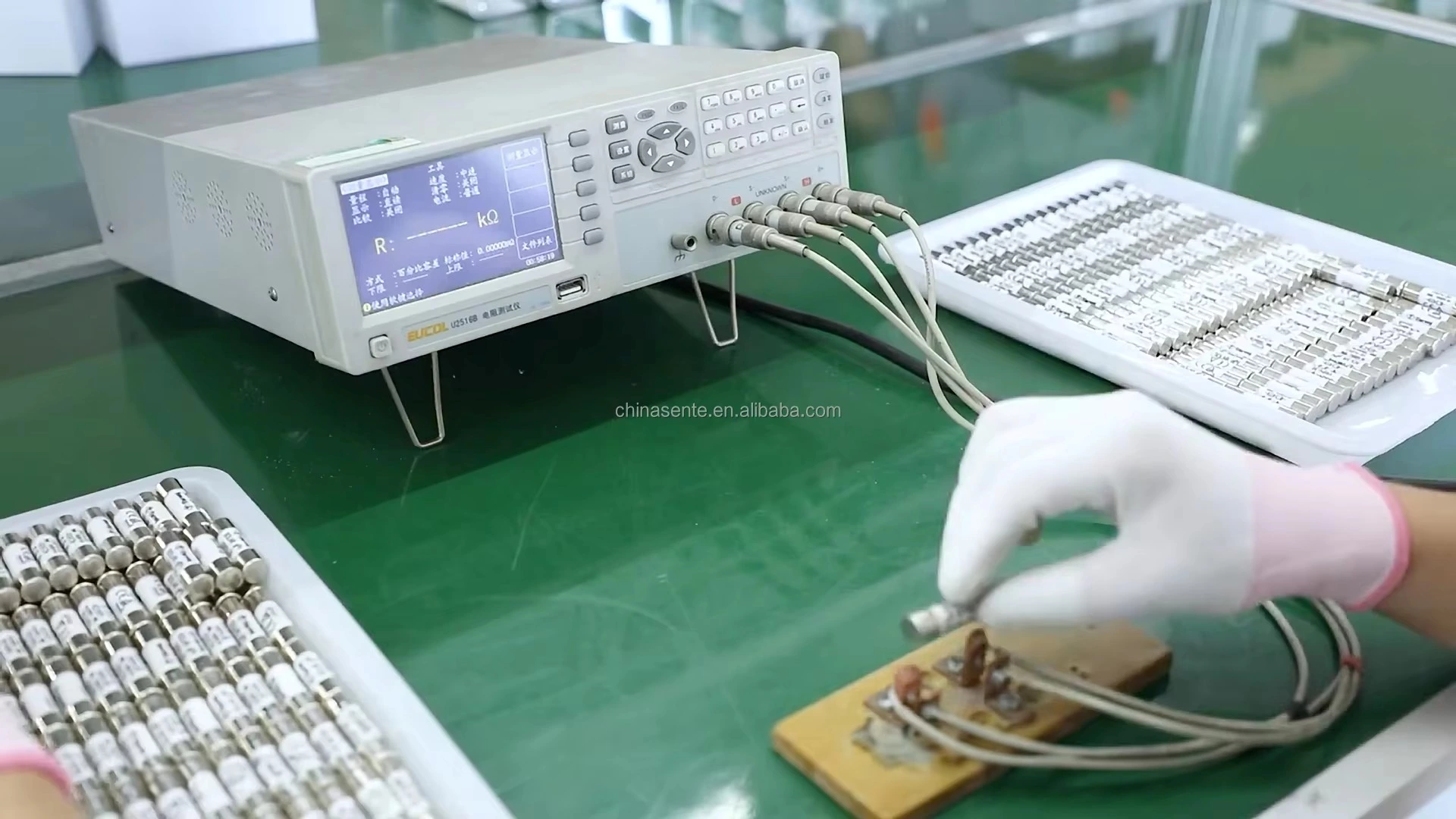

| T1 (10/350 μs) and T2 (8/20 μs) tests | Functional characteristics of fuse 0.5A-3150A voltage test | Resistance test |

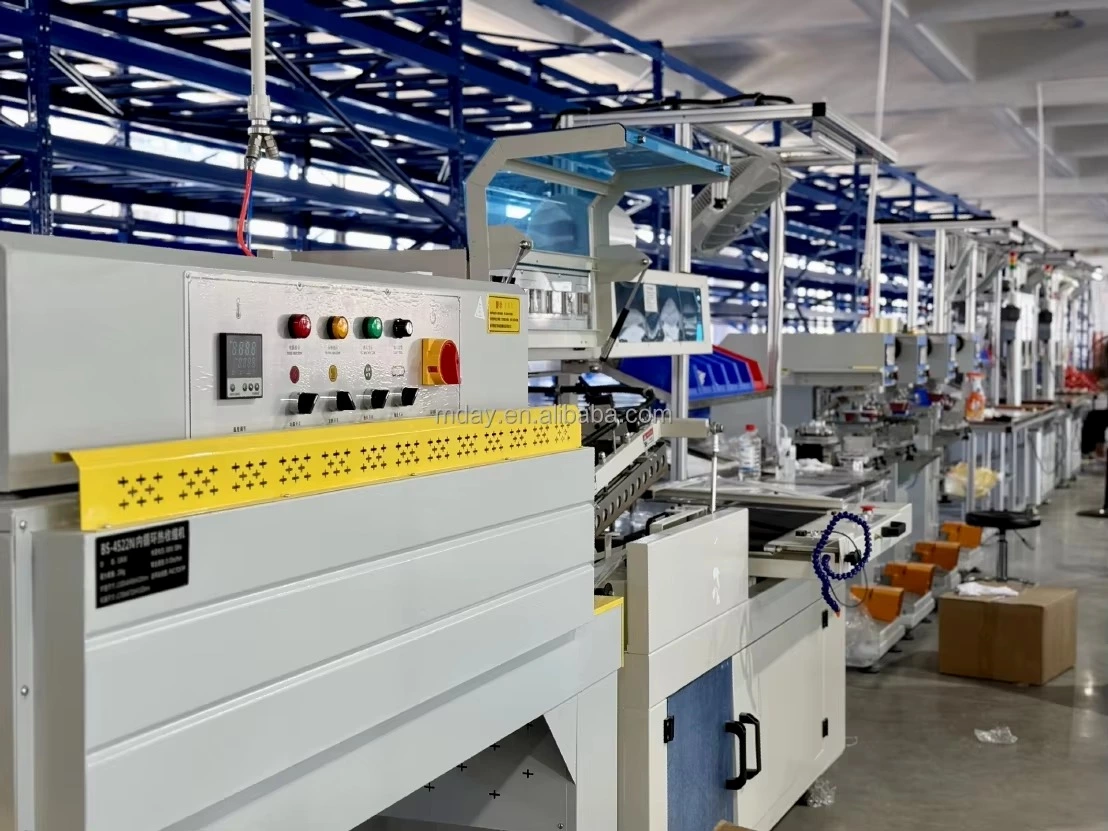

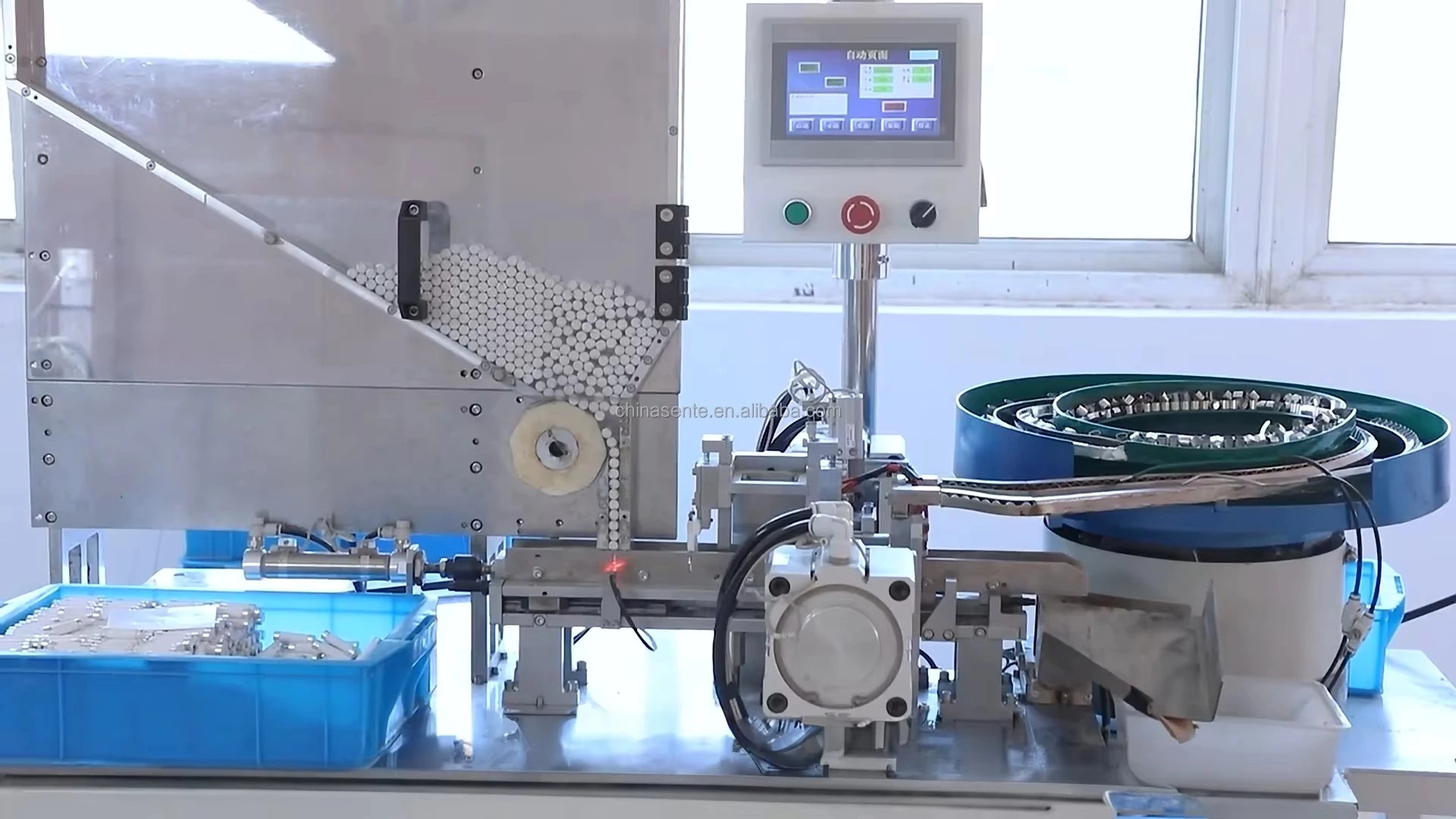

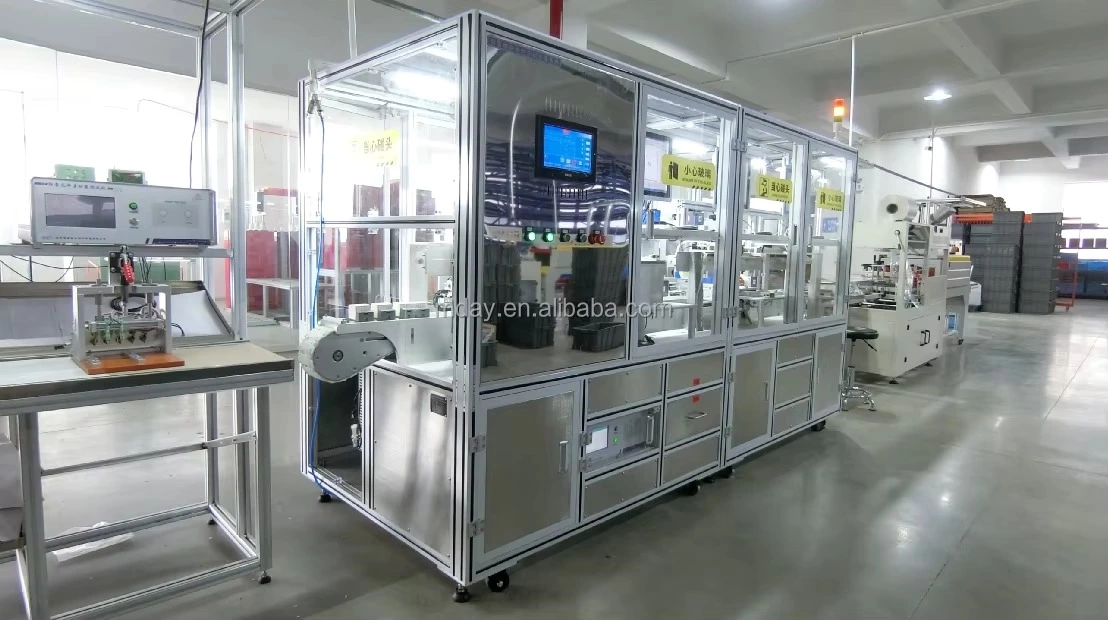

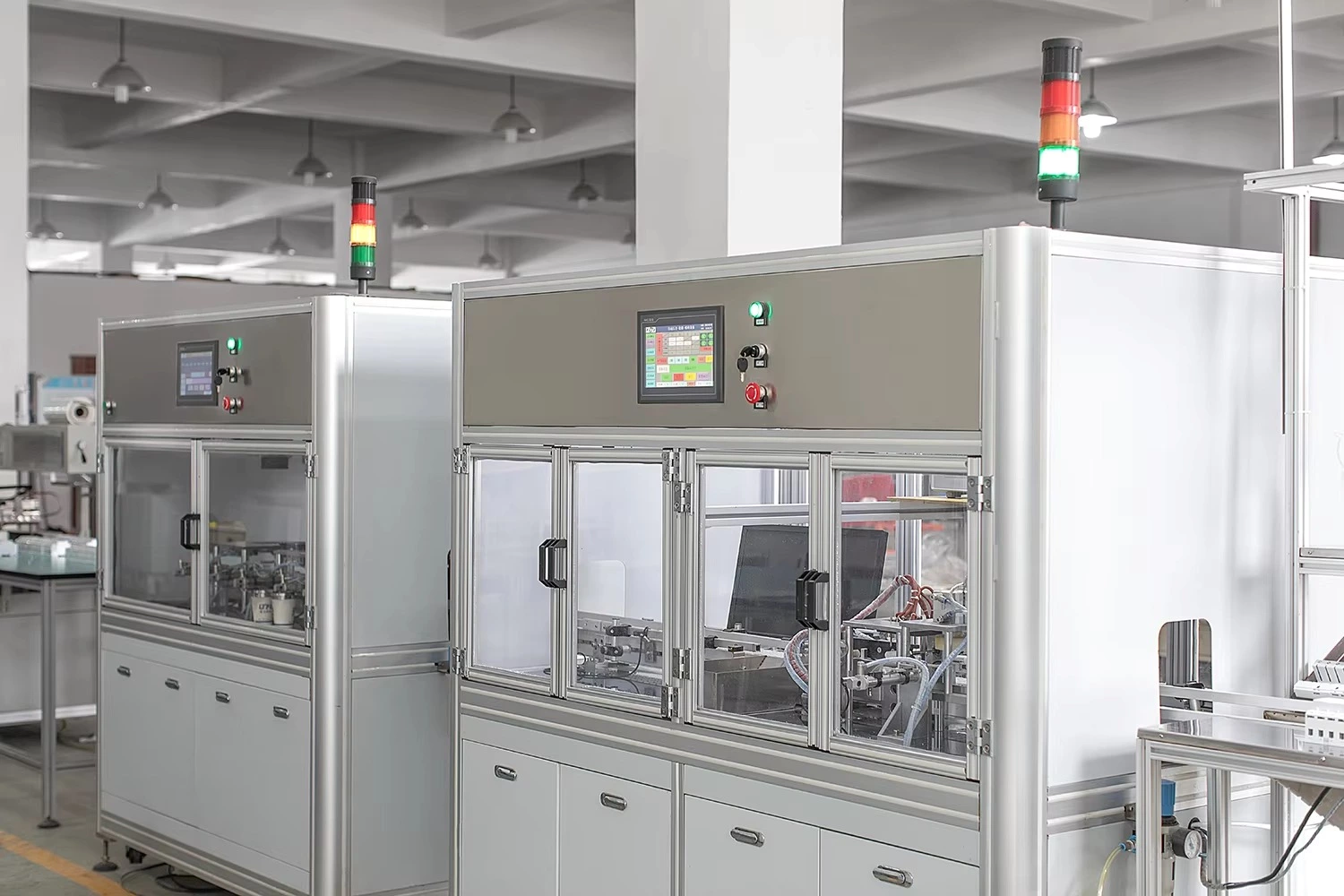

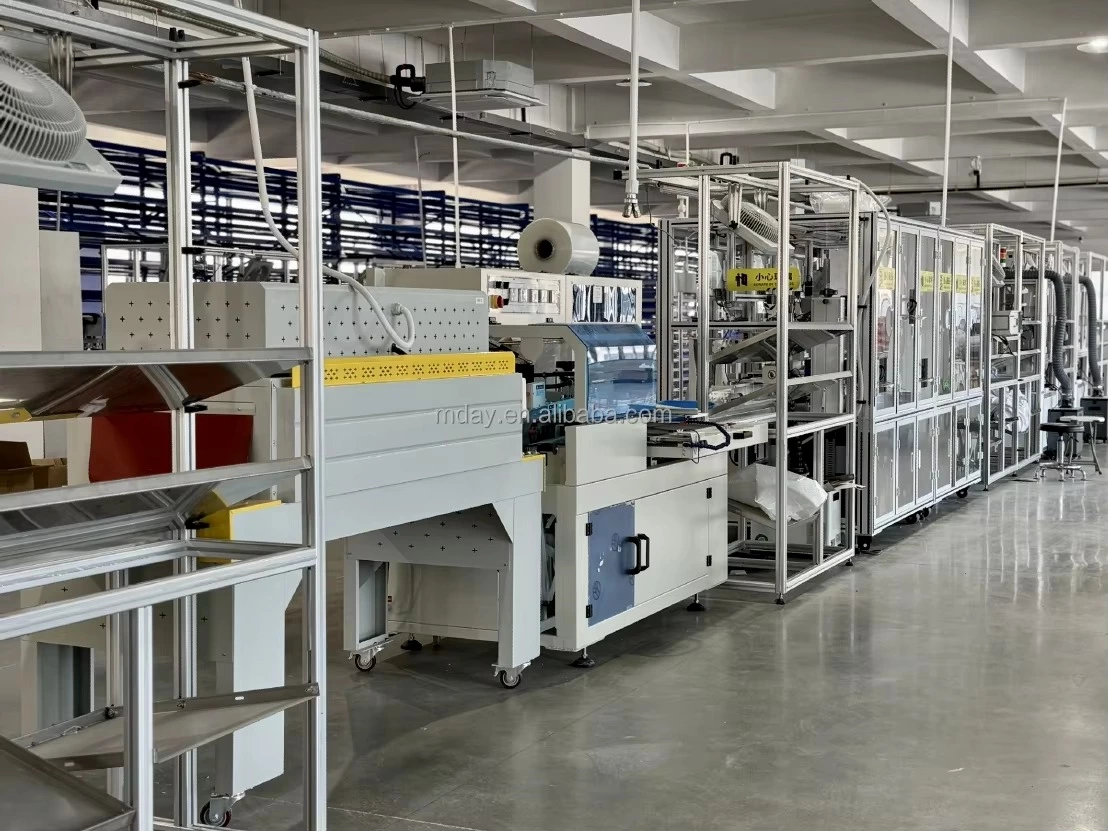

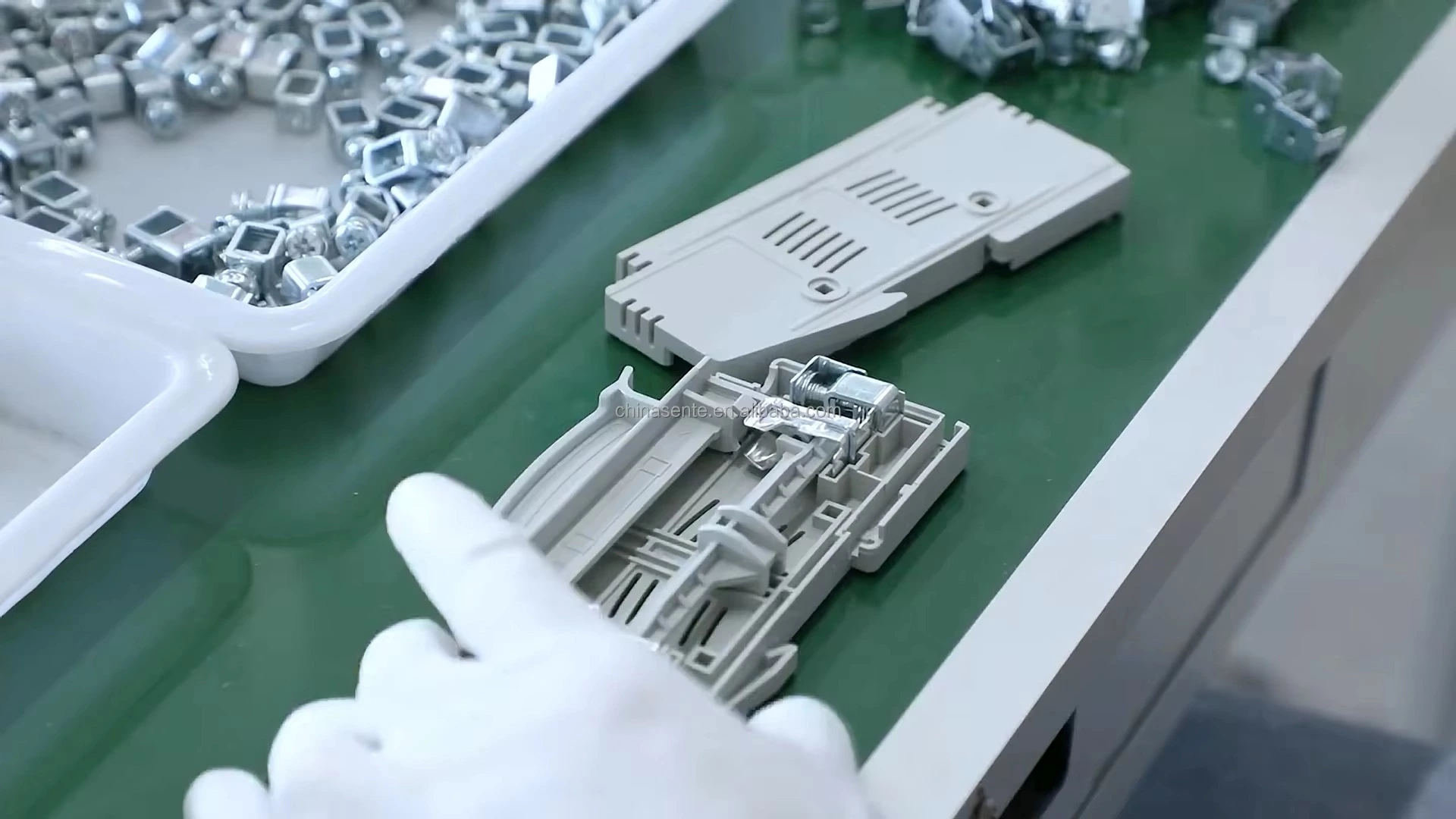

Automatic production line
We have automatic production lines to control the production cycle and product quality of each batch of orders
 |
 |
 |

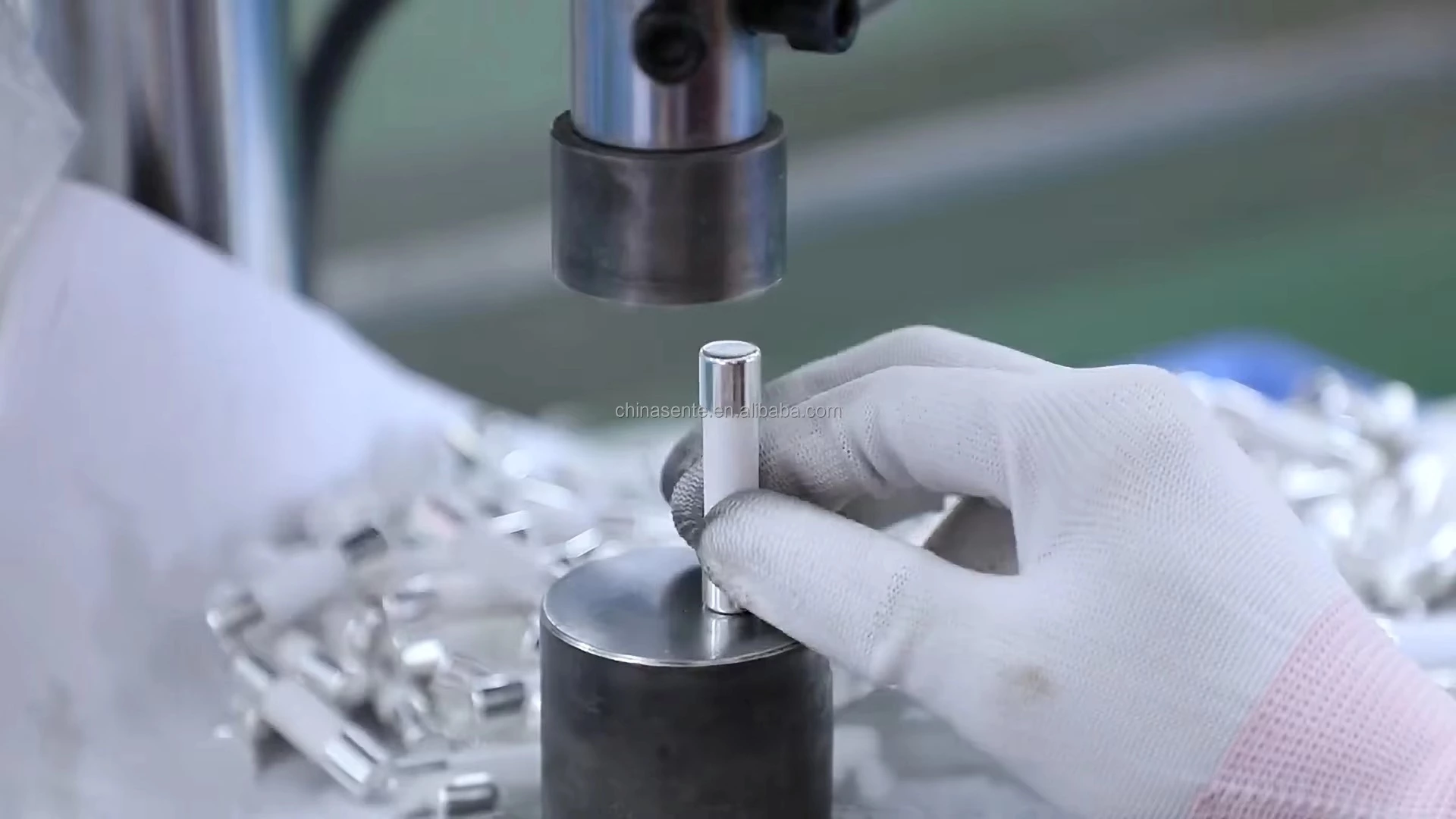

| 1. Automated assembly line | 2. Fuse | 3. Product testing |
 |
 |
 |

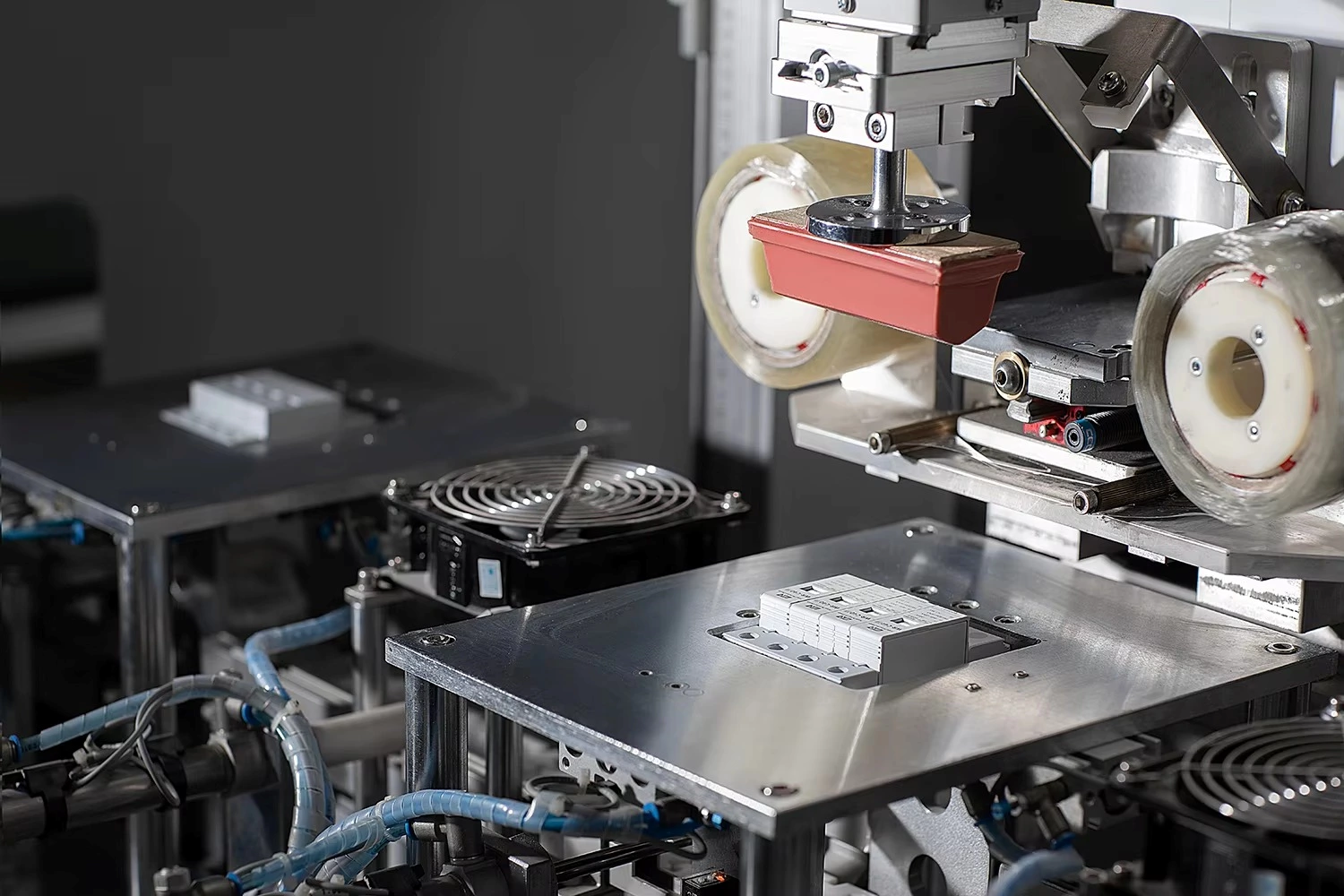

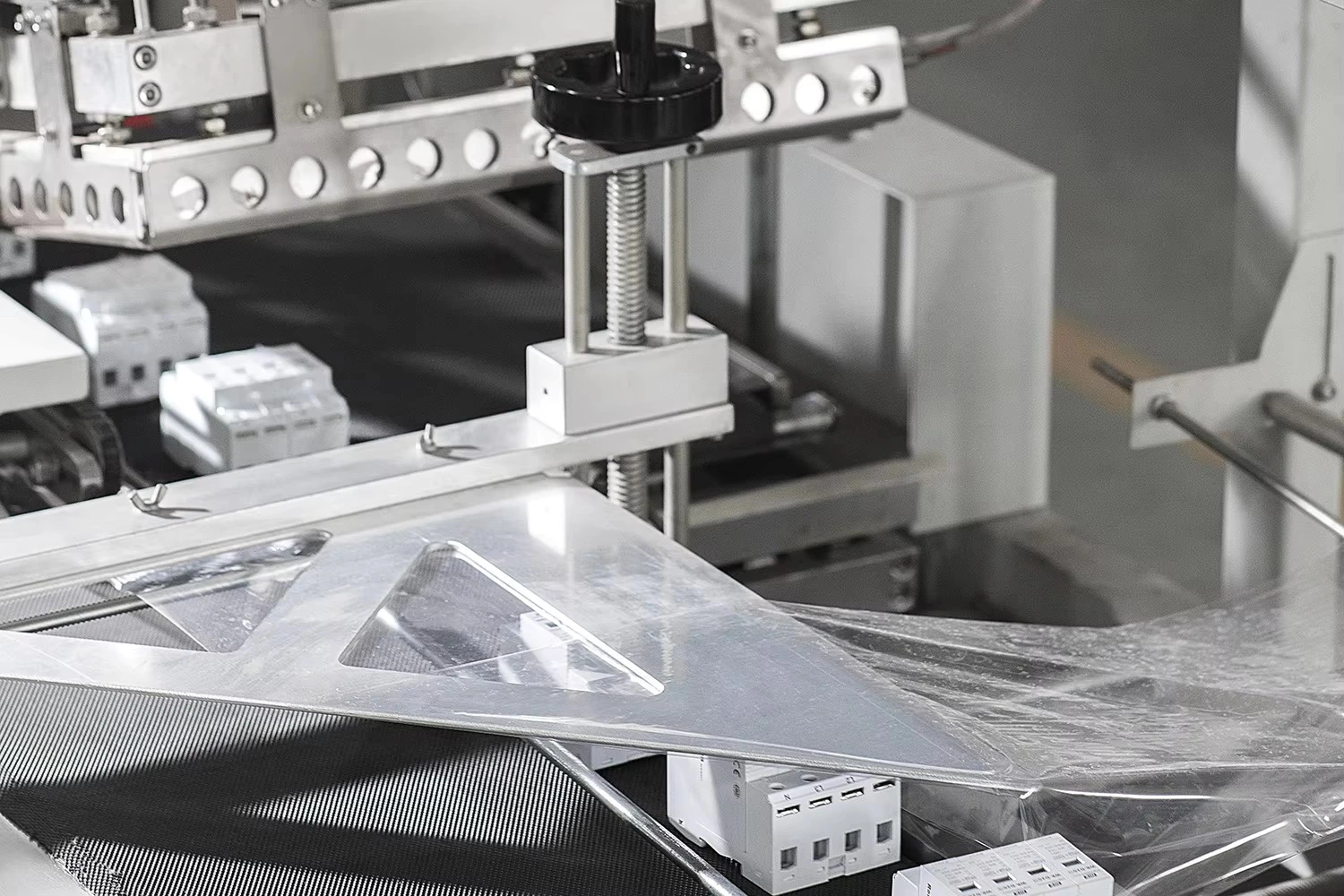

| 4.Laser or pad printing | 5. Hot Packaging | 6. Packaging |
exhibition
Frequently asked questions
Q: Are you a factory or a trading company?
A: We are a factory and can provide OEM, ODM according to your needs. Please confirm our factory video.
Q: After sending the inquiry, when can I receive your quotation and detailed information?
A: All your inquiries will be replied within 24 hours.
A: All your inquiries will be replied within 24 hours.
Q: Your DC fuse seems perfect, but what is the difference between you and other suppliers?
A: Our DC fuses are special for solar energy system, all parts in MCB are customized with high quality.
A: Our DC fuses are special for solar energy system, all parts in MCB are customized with high quality.
Not all DC fuses are for Solar MCB!
Q: How about fuses/fuse holders, can I only buy fuses?
A: We can sell fuses and holders separately and you can choose fuses of different current and voltage.
Q: What about the delivery period?
A: Currently, we do not have enough stock for all models.
Q: How about fuses/fuse holders, can I only buy fuses?
A: We can sell fuses and holders separately and you can choose fuses of different current and voltage.
Q: What about the delivery period?
A: Currently, we do not have enough stock for all models.
Please confirm with the salesman to get the exact delivery period.
